• Model NO.：FN-A4(D)
• CE,ISO：Certificated
• Feature：Down Mounted
• Factory：13 Years
• Package：Wood Carton
• Transport Package：Wooden Case
• Specification：CERTIFICATES: CE, ISO13485, ISO9001, FDA
• Trademark：Foinoe
• Origin：Nanjing, Jiangsu
• Production Capacity：500000sets,Month

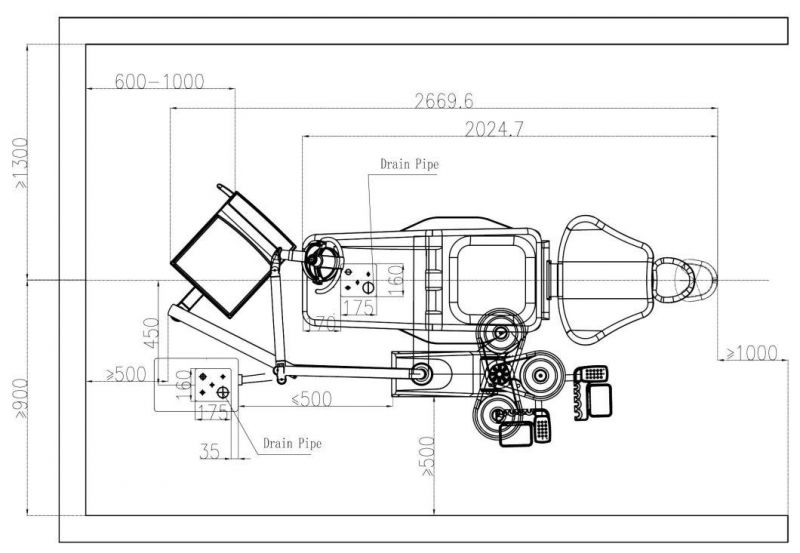

Setting Position

Dental clinic piping requirements

1.Water supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface (PPR Fusion Tube is recommended, 4 points internal and external tooth straight through valve)

2.Air supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface(PPR Fusion Tube is recommended, 4 points internal and external tooth straight through valve )

3.Drainage pipe: White  PVC drain pipe, main pipe 17mm,branch pipe φ50mm.

4.VGA video screen and USB data cable: white PVC threading pipe φ 32mm, leaving a wire to be threaded in the future;

5.Negative pressure pipe: blue UPVC water supply pipe, outer pipe outer diameter φ50mm,branch pipe outer diameter φ 32mm, access to the outer diameter of the dental chair tube25 25mm.

6.Negative pressure signal line: white PVC threading tube, 4 points φ20mm) sleeve2*1mm2 line;

7.Power cord: white PVC threading tube, 4 points (φ 20mm) sleeve 3*1.5mm2 line; Note: Straight angle joints cannot be used at the drain and negative pressure pump connections, and 45 degree joints are used. The water purifier water supply and the air compressor inlet air must be reserved for the switch.

Our company reserves the right to make any improvement on product design without advance notice.

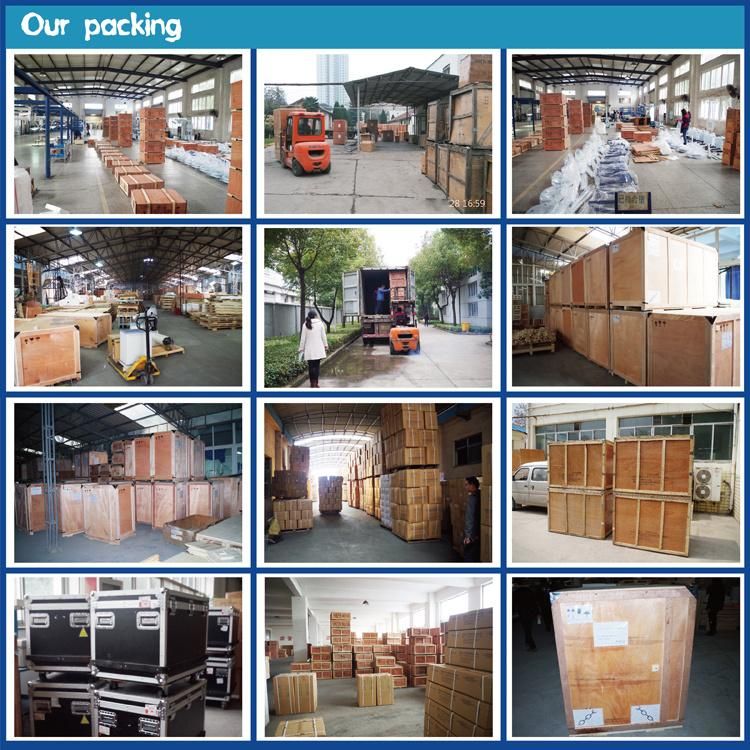

Packing&shipping:

Packaging: wooden case

Shippipng: by sea, air, Express

Certification:
CE & FDA & ISO
Our services:

1. Your inquiry will be replied within 12 hours

2. Competitive prices, high quality, excellent after-sales services

3. All the dental units will be inspected strictly before out of factory, we have strict management and quality control systems.

4. Try our utmost to support & protect our agents, protection of your sales area, and all your private information.
