• Model NO.：SEN-07C
• Application：Adult, Child
• Loading Way：Gland Type
• Head Diameter：Middle Head
• Exhaust Way：Exhaust Outside
• Number of Holes：Two Holes
• Connection：Without Quick Connector
• Rotating Speed：Low-Speed Handpiece
• Noise：Less Than 70dB
• Ratio：1:1
• Transport Package：Plastic Box
• Specification：Aluminum, stainless steel
• Trademark：TEALTH
• Origin：China
• HS Code：90184100
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. SEN-07C Application Adult, Child Loading Way Gland Type Head Diameter Middle Head Exhaust Way Exhaust Outside Number of Holes Two Holes Connection Without Quick Connector Rotating Speed Low-Speed Handpiece Noise Less Than 70dB Ratio 1:1 Transport Package Plastic Box Specification Aluminum, stainless steel Trademark TEALTH Origin China HS Code 90184100 Production Capacity 50000PCS/Year

Product Description

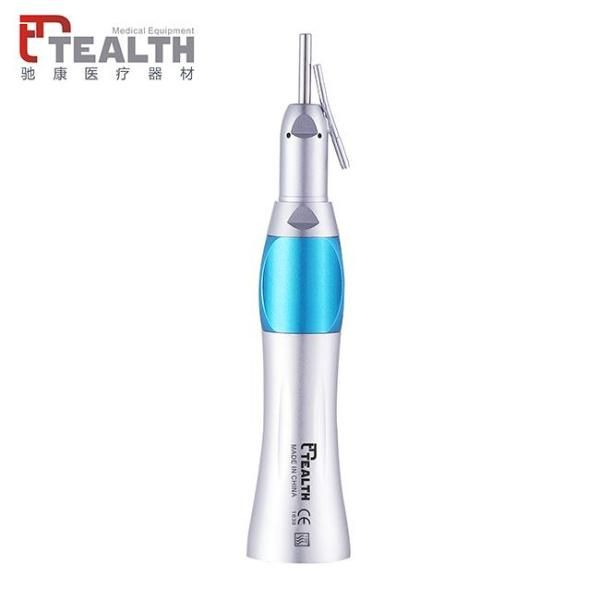

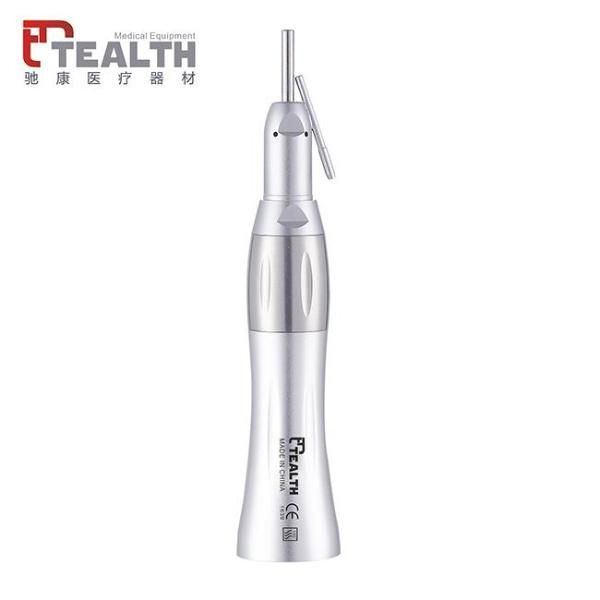

Name: External irrigation surgical Straight dental handpiece
Model : SEN-07C

Packing List:
- Straight handpiece: 1 pcs
- Oil nozzle: 3 pcs
- English manual: 1 pcs

Features:
1.Ratio: E-type Low Speed Handpiece 1:1 Ratio, with external water Cooling System
3. Air Pressure: 245-392Kpa (2.5-4.0 kgf/cm²)
4. Water Pressure: 200Kpa (2kg)
5. Rotation Speed: 14,000-20,000 rpm
6. Bur Applicable: Φ2.334-2.355mm (CA BUR CONTRA ANGLE & HP BUR STRAIGHT CONE)
7. Noise: ≤65dB

Handpiece inserting & removal
Inserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.

Removal
Grip both handpiece and motor respectively, pulling and separating.

Forward/Reverse Rotation
1) Forward Rotation: Turn the FWD/REV change ring to "F".
2) Reverse Rotation: Turn the FWD/REV change ring to "R".
3) When the FWD/REV change ring is positioned in the middle of "F"and "R",the drive air is interrupted and the motor does not rotate.
4) When FEW/REV change ring is positioned in F or R, the rotation speed is maximum.
Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
