Midwest 4 Holes Low Speed Air Motor Dental Handpiece

Tealth Foshan Medical Equipment Co., Ltd.
  • Condition：New
  • Certification：TUV, ISO, CE
  • Material：Stainless Steel
  • Light Way：Without Light
  • Water Way：Outer Channel
  • Usage Times：Non-Disposable

Base Info

  • Model NO.：MIN-01C
  • Application：Adult, Child
  • Loading Way：Gland Type
  • Head Diameter：Middle Head
  • Exhaust Way：Exhaust Outside
  • Number of Holes：Four Holes
  • Connection：Without Quick Connector
  • Rotating Speed：Low-Speed Handpiece
  • Noise：Less Than 70dB
  • Transport Package：Plastic Box
  • Specification：Aluminum, stainless steel
  • Trademark：TEALTH
  • Origin：China
  • HS Code：90184100
  • Production Capacity：50000PCS,Year

Description

Basic Info.

Model NO. MIN-01C Application Adult, Child Loading Way Gland Type Head Diameter Middle Head Exhaust Way Exhaust Outside Number of Holes Four Holes Connection Without Quick Connector Rotating Speed Low-Speed Handpiece Noise Less Than 70dB Transport Package Plastic Box Specification Aluminum, stainless steel Trademark TEALTH Origin China HS Code 90184100 Production Capacity 50000PCS/Year

Product Description

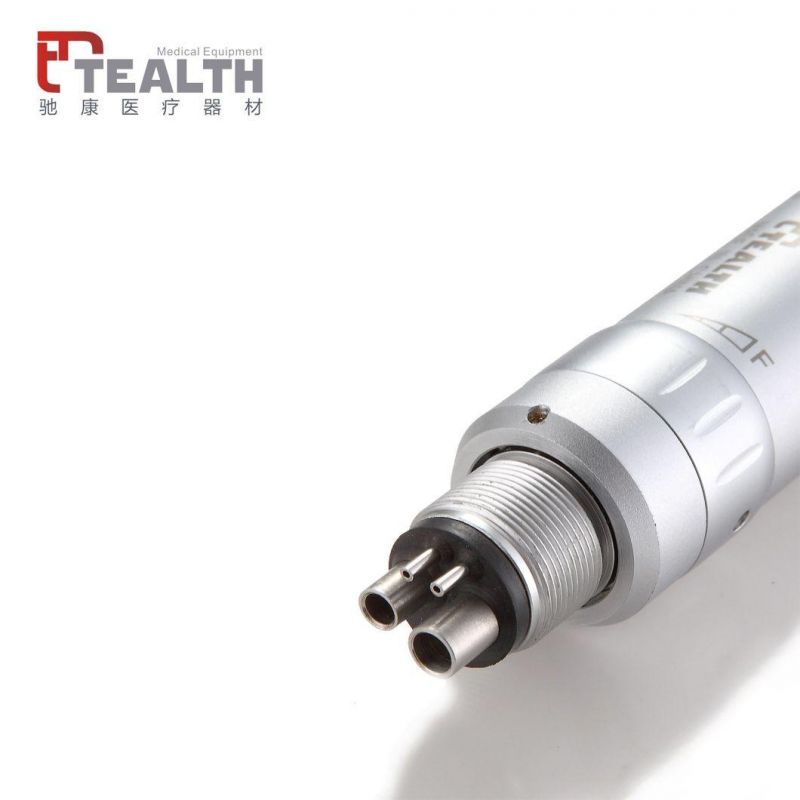

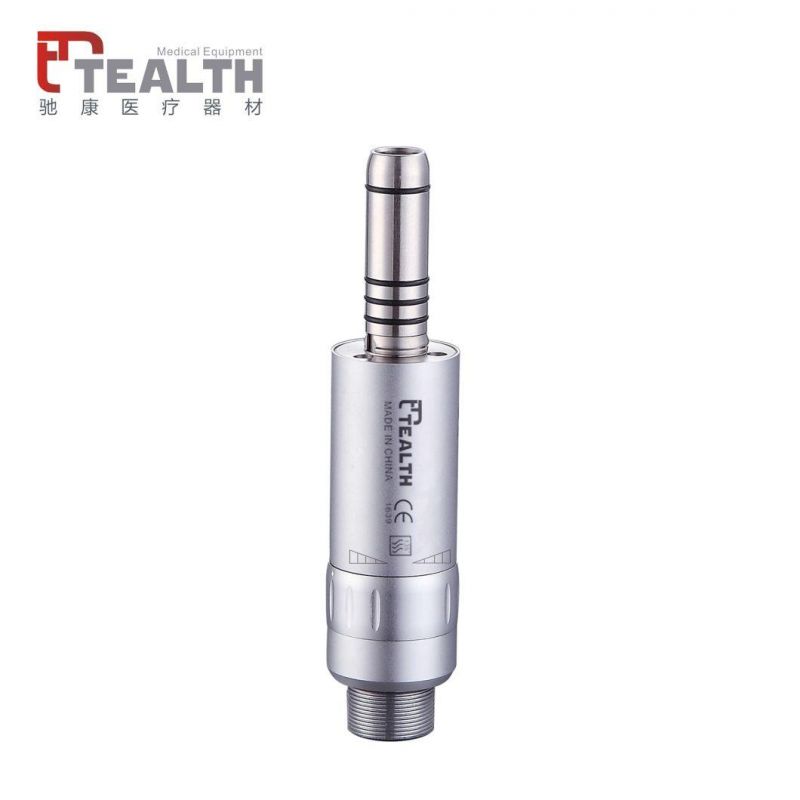

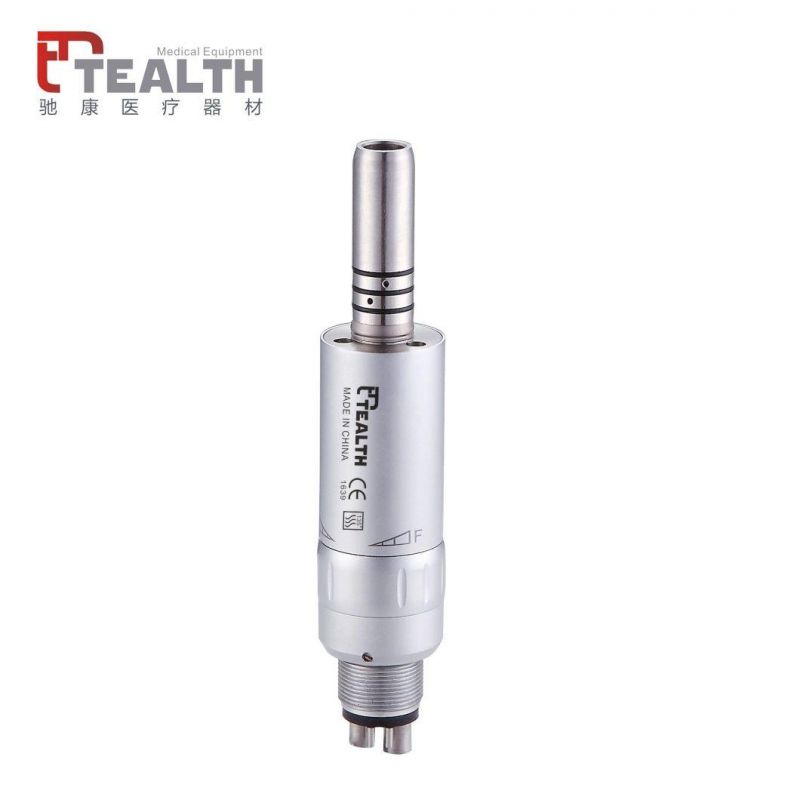

Name: Low speed 1:1 air motor dental handpiece
Model : MIN-01C
Midwest 4 Holes Low Speed Air Motor Dental HandpieceMidwest 4 Holes Low Speed Air Motor Dental HandpieceMidwest 4 Holes Low Speed Air Motor Dental HandpieceMidwest 4 Holes Low Speed Air Motor Dental Handpiece

Packing List:
- Air motor: 1 pcs
- O-ring: 4 pcs
- English manual: 1 pcs

Features:
1. Internal irrigation, perfect cooling  systerm
2. Bur size: Φ2.35mm
3. Imported bearing from Japan

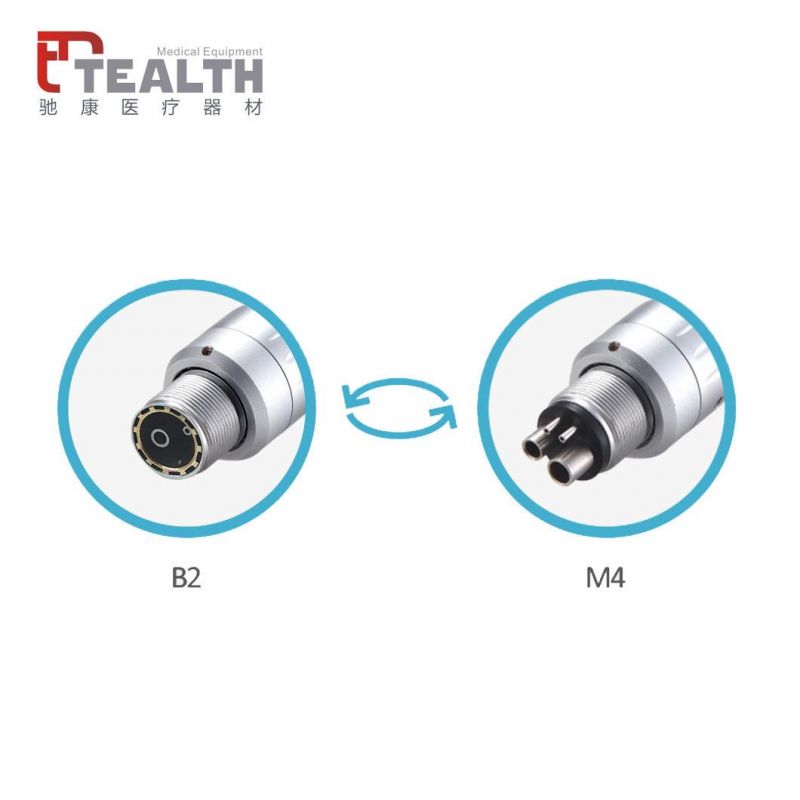

4. Four or two holes conneaction can be choosen

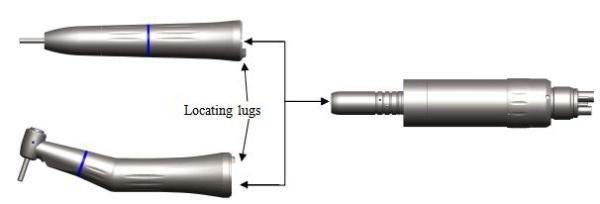

Handpiece inserting & removal
Inserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.

Removal
Grip both handpiece and motor respectively, pulling and separating.
Midwest 4 Holes Low Speed Air Motor Dental Handpiece

Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
