• Model NO.：YSMJ-TDA-C23
• Certificate：Ce
• Brand Name：Ysenmed
• Name：Steam Autoclave
• Application：Dental Clinic
• Transport Package：Wooden Case
• Specification：CE certificate
• Trademark：YSENMED
• Origin：China
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. YSMJ-TDA-C23 Certificate Ce Brand Name Ysenmed Name Steam Autoclave Application Dental Clinic Transport Package Wooden Case Specification CE certificate Trademark YSENMED Origin China Production Capacity 500 Sets/Year

Product Description

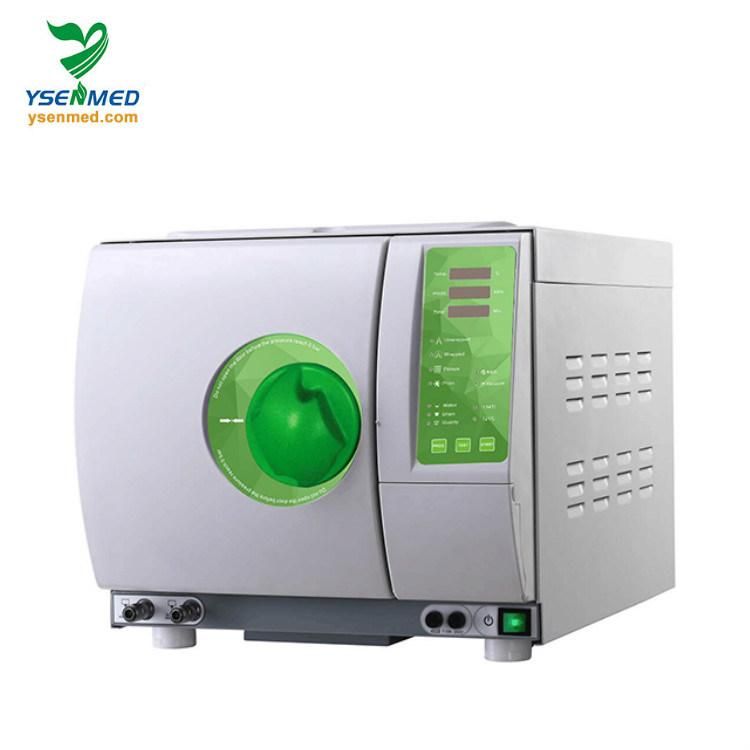

Hospital Medical Class B Dental Steam Autoclave
YSMJ-TDA-C23





Model	Voltage/Power	mm Chamber Size	mm Outside Size	mm Packing Size	kg Net Weight
YSMJ-TDA-C12	220V/1400W	φ192×340mm	560X450X400mm	660X525X495mm	43kg
YSMJ-TDA-C18	220V/1500W	φ245×360mm	560X450X400mm	660X525X495mm	47kg
YSMJ-TDA-C23	220V/1700W	φ245×470mm	670X450X400mm	770X530X495mm	53kg


Features:
1. The newly-designed model with opening water tank on the top, strictly meets the standard of EN13060, which makes wash and cleaning much more convenient.

2. It adopts European B standard with 3-times pre-vacuum preceding vacuum drying.
Residual humidity is less than 0.2%.

3. Vacuum measurement reaches-0.8bar.
It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, Whether solid or A-type hollow, whether with multi-apertures or inset pipes.
It efficiently tides air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner.

4. Fuzzily computer controlled, digital bright show.
The interface is modularized panel for easy operation.

5. It is installed with BOWIE&DICK which measures the penetration of water steam.

6. Mini printer can be attached to record the process of sterilization
