• Feature：Can Be Designed Into Wireless

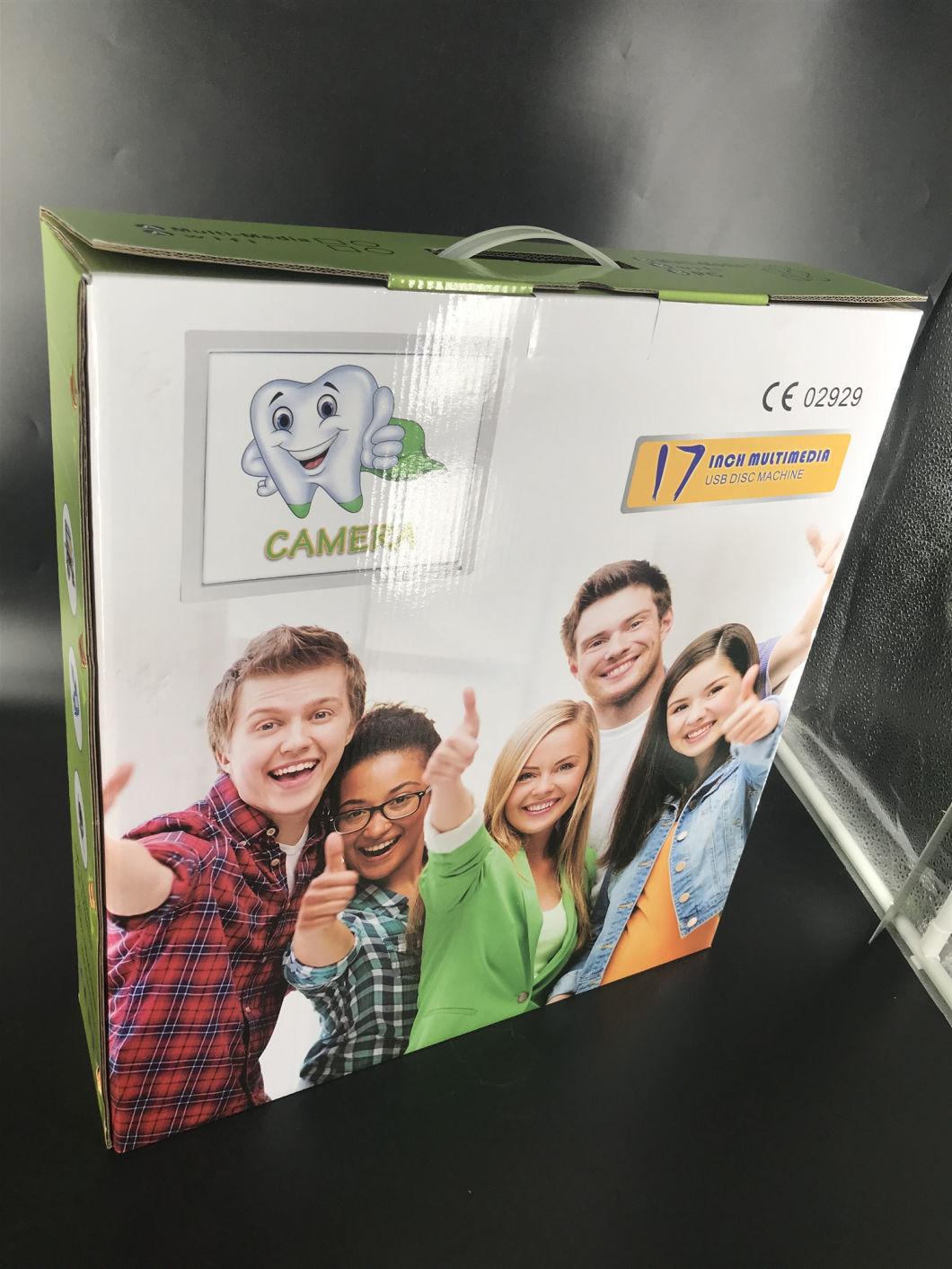

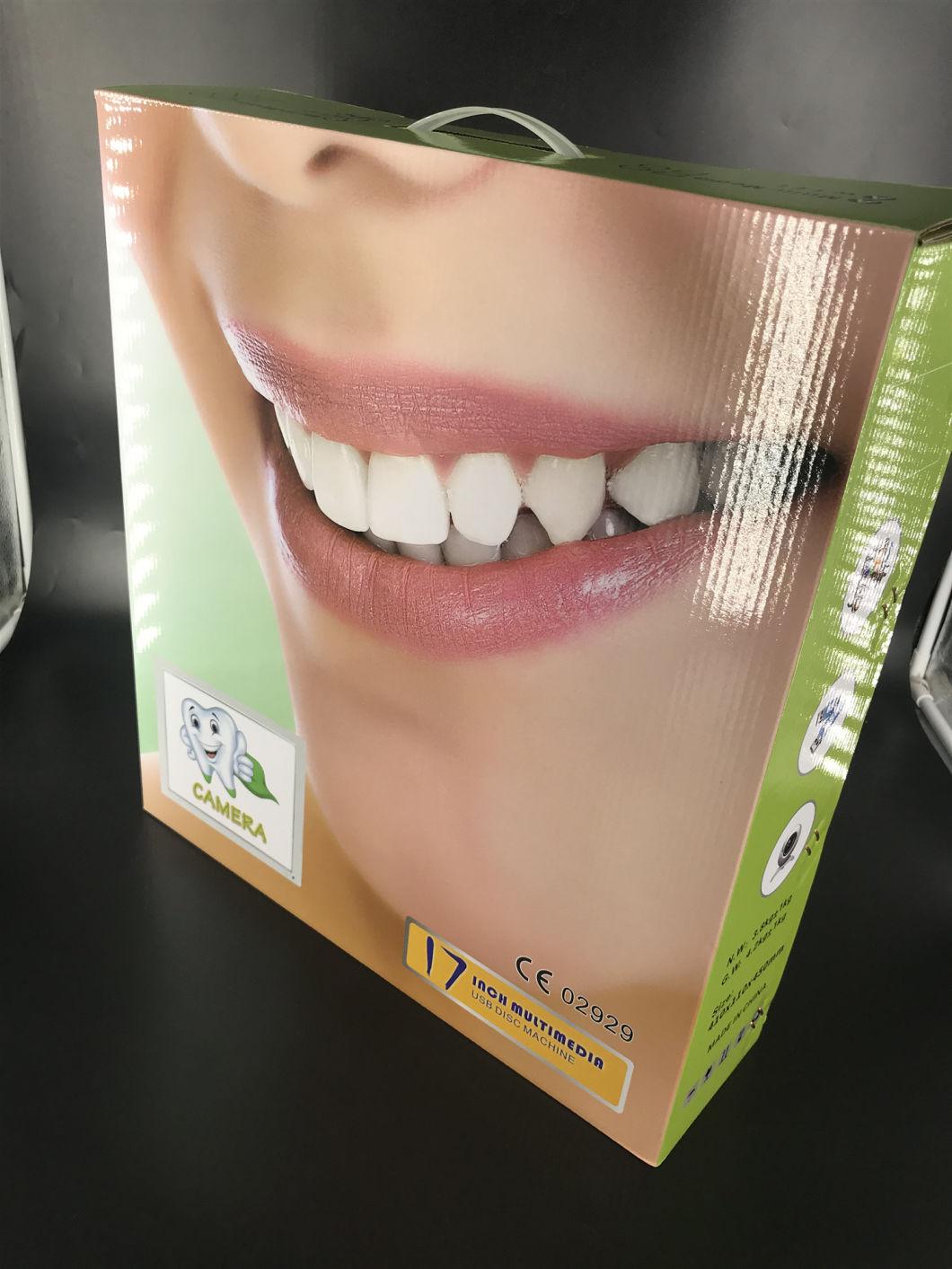

• Transport Package：Standard Carton Box with The Protective Bag
• Specification：1 pcs
• Trademark：Topmed
• Origin：China
• HS Code：90184100
• Production Capacity：50000PCS,Year

Basic Info.

Feature Can Be Designed Into Wireless Transport Package Standard Carton Box with The Protective Bag Specification 1 pcs Trademark Topmed Origin China HS Code 90184100 Production Capacity 50000PCS/Year

Product Description

Product Description

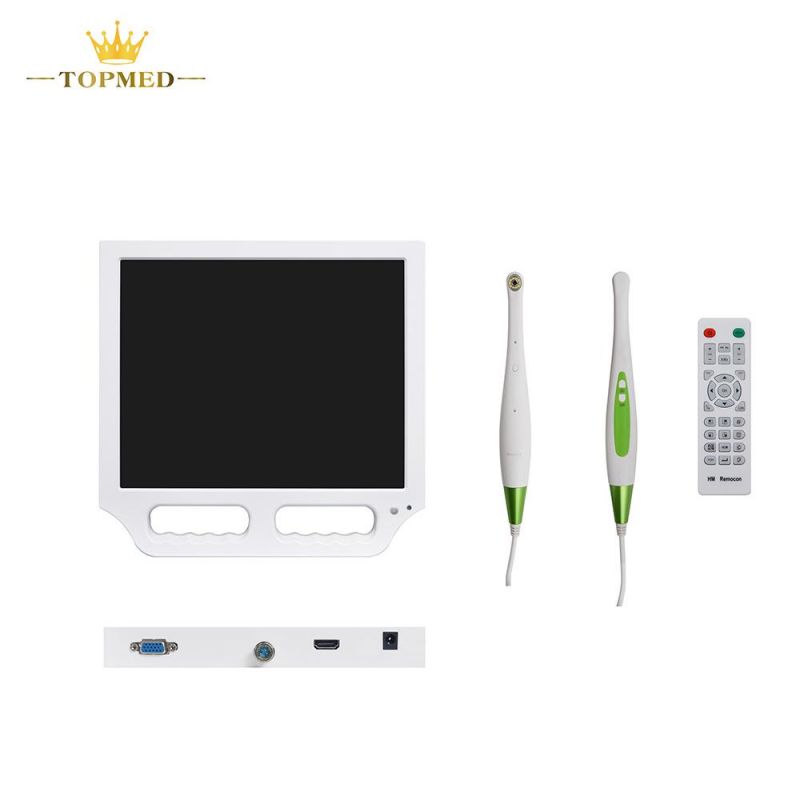

Dental oral camera system with display dental endoscope integrated machine

1.image sensor:1/5 CMOS sensor
2.image resolution: 2 megapixel, software upgrade to 4 megapixel
3.camera Angle:no-plastic lenses level large field of view to 130 degrees, especially suitable for the mouth of a scan
4.video signal output format:VGA HD 720p signal source
5.camera lighting:Four high-energy LED cold light design
6.focus point range:1mm-50mm automatic support
7.use way:Handheld integration of one handle
8.special functional design: SD card large storage function, HD-720Pvideo, system clock management functions ,have the picture in picture capture mode and automatic shutdown function more than 5 SEC
9.work power requirements: 5 v - 1 A stable DC power supply



TECHNICAL SPECIFICATIONS:


The screen size:	15 / 17 inches
The vertical viewing angle:	135 degrees
The black and white response time:	2 ms
The gray scale response time:	2 ms
.The pitch:	0.264mm
The panel type:	TN
The interface type:	VGA + USB
The average brightness:	1000cd/m^2
The resolution:	1024X768
The level of visual angle:	135 degrees
The LCD screen type:	perfect screen
The proportion of the screen:	4:3 / 16:9
The nominal contrast:	10000:1
The screen type:	LED

Picture:
