• Model NO.：HiRes 3D-Plus
• Voxel Size (mm)：0.3, 0.25, 0.2, 0.125, 0.1, 0.075
• Brand Name：Largev
• Place of Origin：China
• Trademark：Largev
• Origin：China
• HS Code：90221300
• Production Capacity：5000pieces,Year

ModelHiRes3D-PlusField of View (mm × mm)200×170,160 × 100, 160 × 50, 80 × 80Voxel Size (mm)0.3, 0.25, 0.2, 0.125, 0.1, 0.075Spatial Resolution (lp/mm)2.4Reconstruction Time(s)≤40Tube Current(mA)min: 2 max: 10 (60kV)Tube Voltage(kV)min: 60 max: 100 (6mA)Scan Time(s)13,15,18Focal Spot Size0.5(IEC336)Sensor Typea-Si Flat Panel DetectorSensor Size(cm)16x16Weight(kg)340Unit Dimensions(mm)1825(D) × 1077(W) × 2109(H)Packing Size(mm)Case 1: 1930×800×1300, 403kg, Case 2: 1970×1270×1170, 290kgPowersingle-phase, AC220V/230V, ±10%, 10A, 50Hz, ±1Hz Product DescriptionEquipped with LargeV's latest artificial intelligence system and upgraded precision imaging system, the LargeV HiRes3D fulfills your implantology, orthodontics, gnathology, respiratory path analysis, maxillofacial surgery, orthopedic surgery and otolaryngology needs.

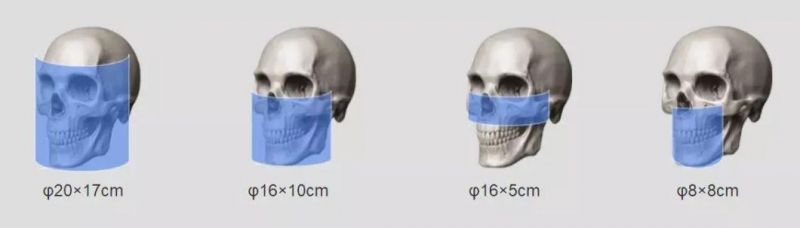

 Super Large FOVAll kinds of dental clinical requirements would be solved accordingly by the flexible FOVHD Image

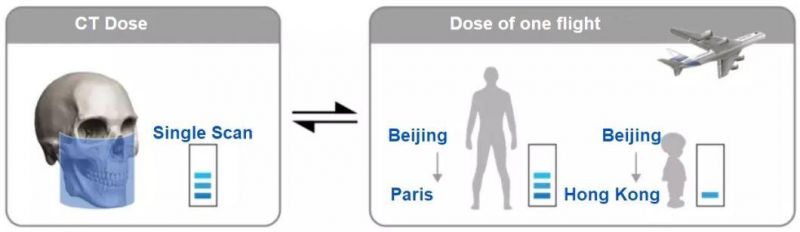

The 0.5 small focus ball tube, with a highest resolution of up to 2.6lp/mm, ensures the fine oral structure is clearly visible.Low DoesBoosted by the deep-learning based CT reconstruction algorithm, the Smart3D is now able to obtain the more defined tomography while further reducing the radiation dose by 83%, once again topping the industrious standard in respect of low dose control.
 Clinical Applications

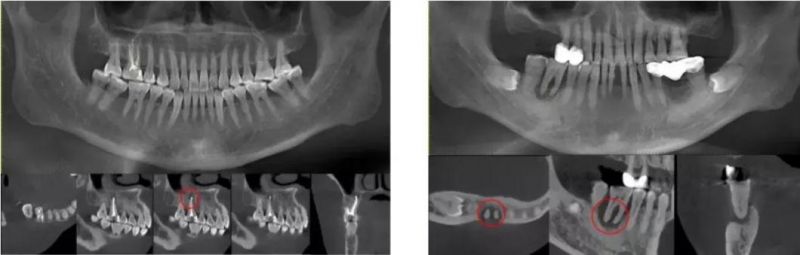

1) Endodontic and Periodontal Examinations

The HiRes3D with an image resolution up to 2.6 lp/mm, provides rich and accurate information for the examination of endodontic and periodontal diseases.

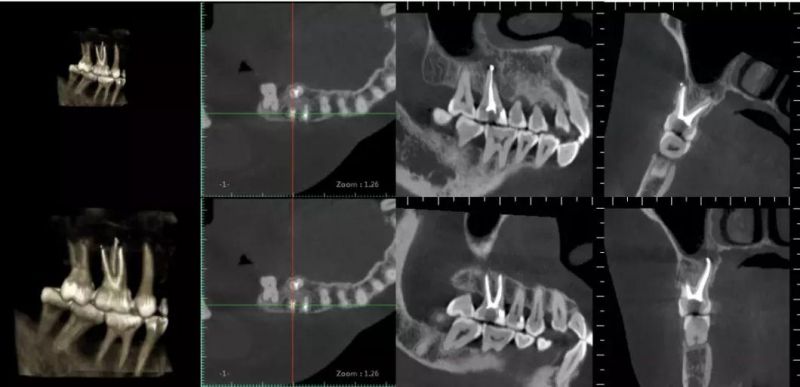

2) Root Canal Filling Examinations

With a professional color map and filter, the HiRes3D can clearly identify the orientation, shape and size of a root canal.
Multiple and complex root canal treatments can be easily and accurately observed in 3D.

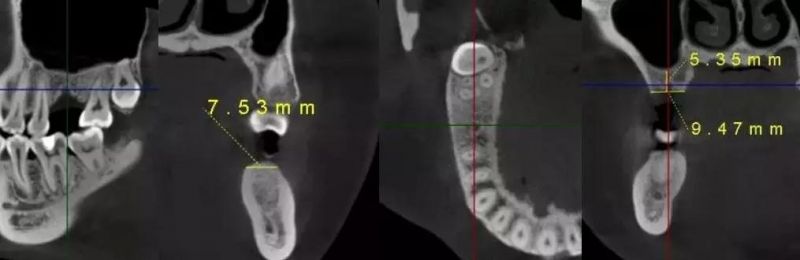

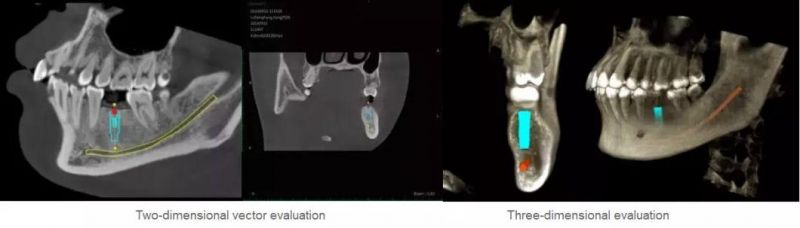

3) Implant Applications

By using the full oral 3D image generated by HiRes3D, we can evaluate the bone density of the implant area, determine the relationship between the implant position and adjacent anatomical structure, finalize the placement, optimize the length and diameter of the implant, improve implant success rate and avoid possible neurovascular damage.

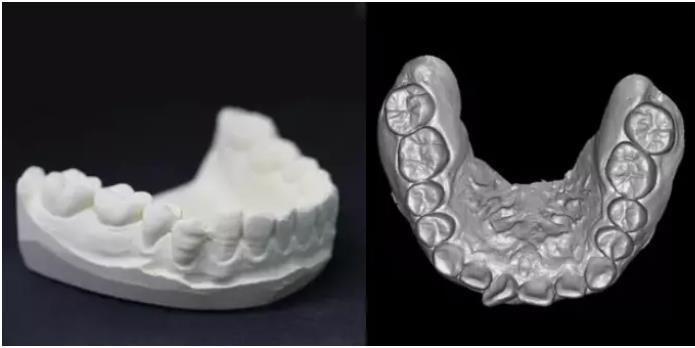

4) Model Scan (optional)

The HiRes3D has a model scan function for scanning impressions and plaster models. Scanning accuracy is up to 100μm. The system can easily export STL 3D digital model files for third-party surgical guides and printing.


5) Post-Implanting Assessment

As the metal artifact correction function is optimized with artificial intelligence, the HiRes3D can more accurately judge the estimation and status of implant position, angle and jaw for the dentist to assess post-implant planting.

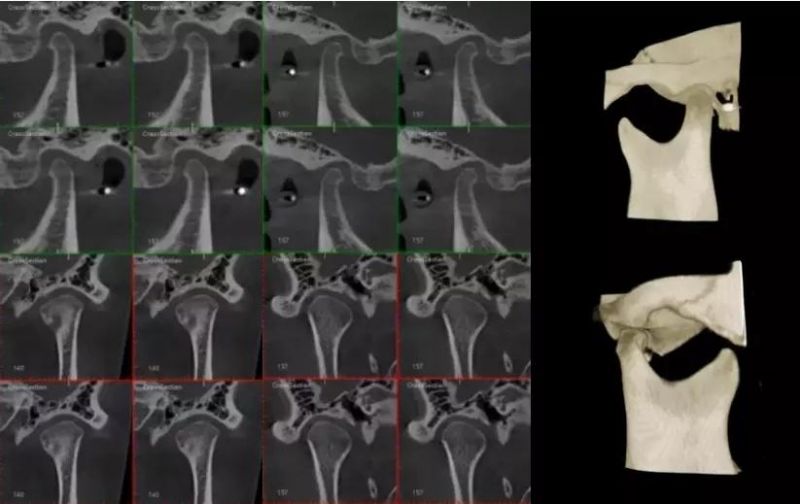

6) Temporomandibular Joint Disorders

With the SmartV high resolution 3D image and multi-layer slicing function imaging system, the HiRes3D can display condyle and fossa morphology in extremely clear detail, easily identify erosions, osteophytes and fractures, provide more information for the diagnosis of temporomandibular joint disorders and evaluate the therapeutic effect.

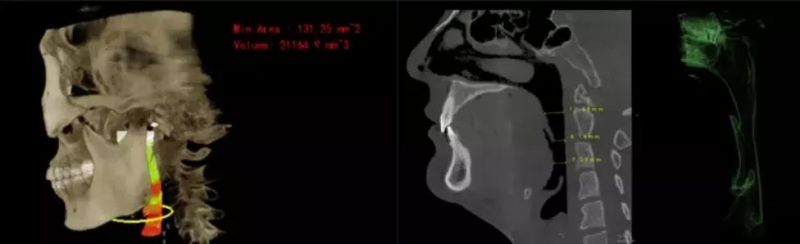

7) Airway Observation

With auto trace function and gradient color display, the HiRes3D can automatically trace the airway, calculate the volume, highlight the narrow area with different color, and calculate the size of the narrowest area for optimal treatment of patients suffering from sleep disorders, sleep apnea, and sinus complications.

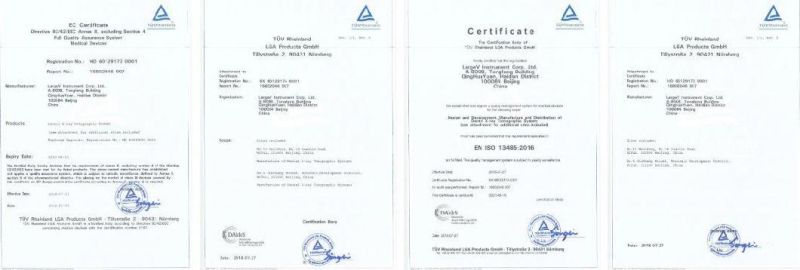

 Certifications
