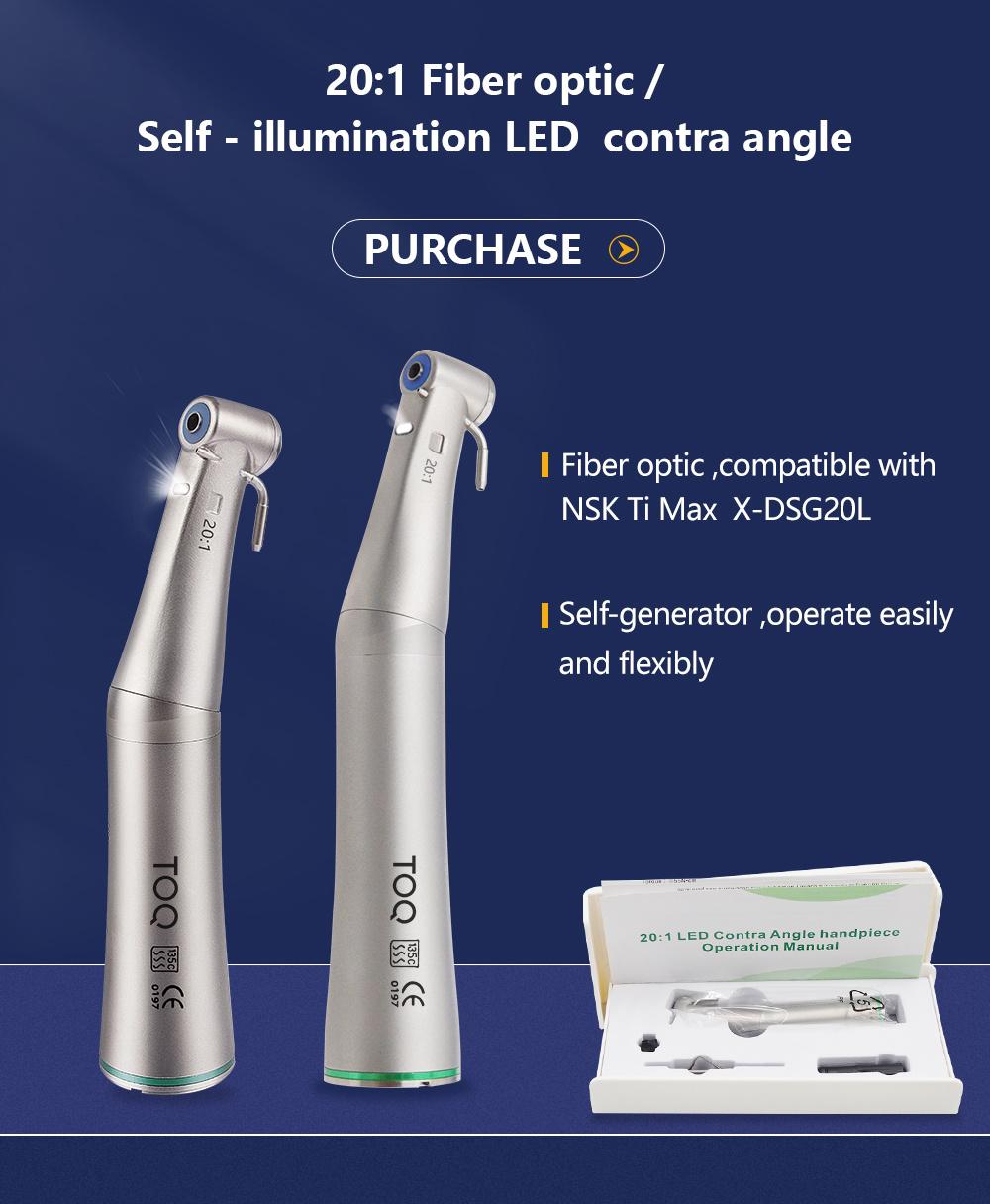

Medical Equipment Fiber Optic Contra Angle with Special Anti-Fouling Treatment
Foshan Topmed Dental Co., Ltd.- Condition：New
- Certification：ISO, CE
- Material：Stainless Steel
- Light Way：Without Light
- Water Way：Inner Channel
- Usage Times：Non-Disposable
Base Info
- Model NO.：TM-SG20
- Application：Adult, Child
- Loading Way：Gland Type
- Head Diameter：Big Head
- Exhaust Way：Exhaust Outside
- Number of Holes：Non
- Connection：Without Quick Connector
- Rotating Speed：Low-Speed Handpiece
- Ration：20:1
- Noise：Less Than 68dB
- Connection Way：Connect to E-Type Motors
- Speed：Max. 40, 000rpm
- Max Torque：70ncm
- Bur Size (Low Speed Bur)：2.345-2.355mm
- Transport Package：Standard Export Carton
- Specification：23pcs,box
- Trademark：Topmed
- Origin：China
- HS Code：90184100
- Production Capacity：5000,Month
Description
Features
1.Generator LED 20:1 contra angle for implant
2.Max torque 80N.cm, provides sufficient force at low

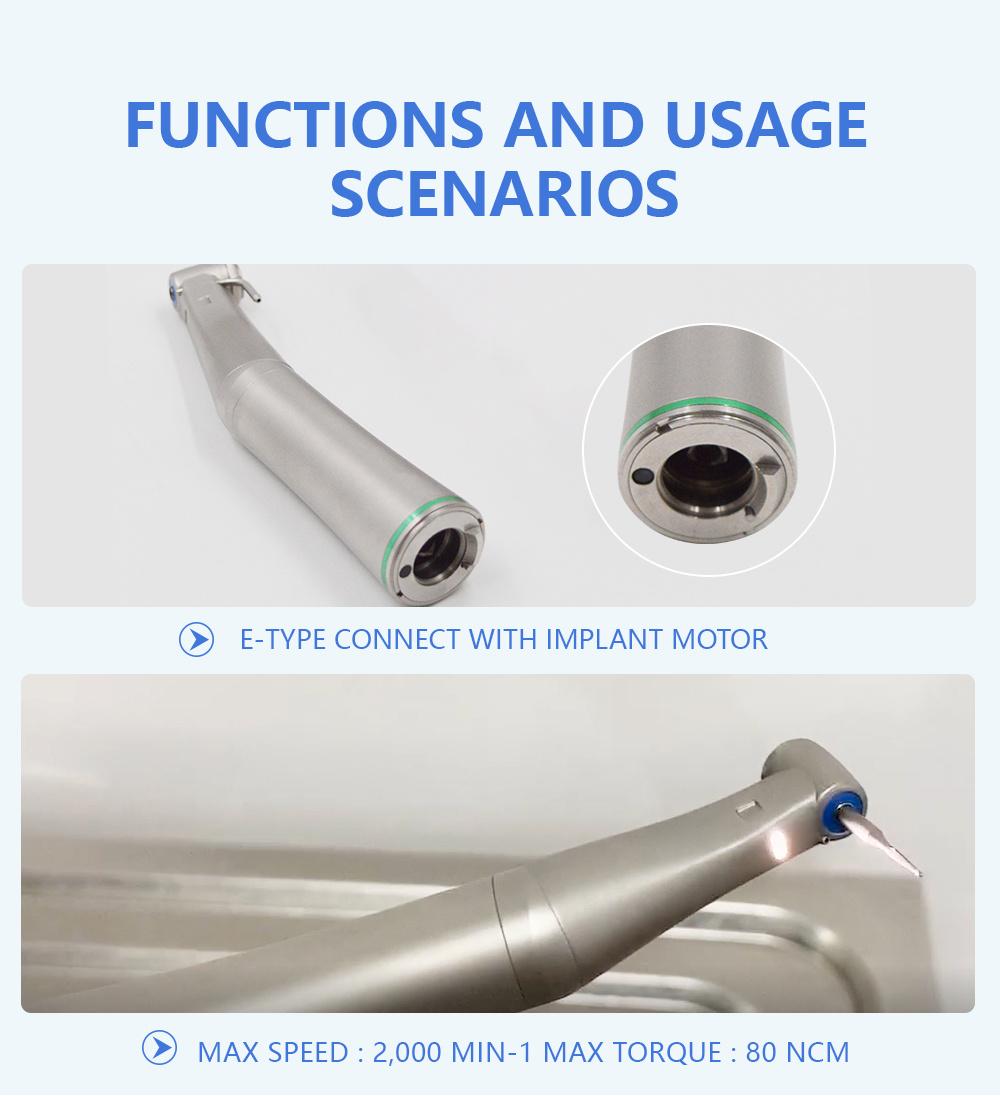

3.Interface Type E-type (work for air motor and electrical motor) Torque: 65Ncm
4.anti-suction system configuration
5.Inner water spray
6.Working pressure: 0.3MKpa
7.Noise ≤ 55dB (far below international standards ≤ 70dB); Inner water cooling system
8.Applicable Tool:FG bur (1.60mm)
9.Sterilization conditions: 135 ºC autoclavable

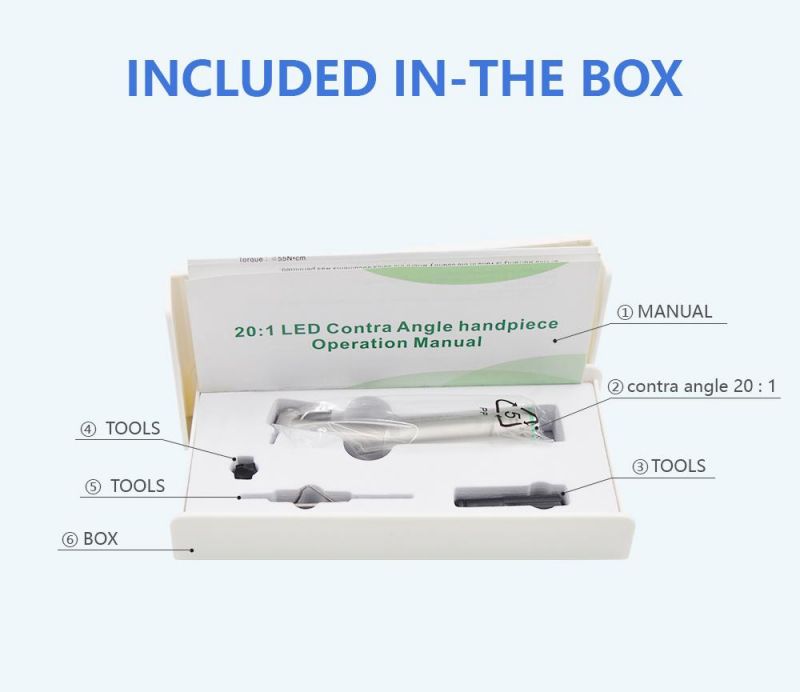

Pack list :
1. 20:1 contra angle *1 pcs
2. cap spanner * 1 pcs
3. Operation manual * 1 pcs
4. E -type Oil spray nozzle *1 pcs
5. Internal water tube * 1 pcs
6. tube fixture holder *1pcs
7. Black box /Transparent box * 1 pcs
Handpiece maintaince
There are two methods of cleaning dental handpieces. One is to use an automatic handpiece system, such as the QUATTRO care Plus, prior to sterilization. The other option is to manually maintain your handpieces. If you elect to manually maintain your handpieces, here are the steps to do so.
Step 1: Clean Handpiece
The first step in cleaning a dental handpiece is to lightly wash the handpiece under cool running water to remove excess debris.
Step 2: Handpiece Lubrication
Following external cleaning, connect the handpiece to the handpiece lubricant spray using the appropriate nozzle for the handpiece you are cleaning. For this air handpiece, we are using a multiflex nozzle. Spray for approximately 2 seconds. We recommend using a cloth or paper towel wrapped around the handpiece to contain the spray. It is ok if some excess lubrication remains in the handpiece.
Step 3: Purge Handpiece
After lubrication, you'll want to purge your handpiece. Simply connect the handpiece to your multiflex connection, step on the foot petal and purge for 30-40 seconds. The handpiece is now ready for sterilization.
About us
FAQ:
Q:Where is your factory located? How can I visit there?
A: Our company is located in Foshan City, China,really glad to invite you to come to our office to have a face to face meeting before the bulk order.
Q: How long is warranty for items?
A: 1 year.
Q: Could you print LOGO for items?
A: Sure, I can help you print LOGO as your request.
Q: How to order?
A: Tell me the Items model and quantity you order. I will make the Proforma Invoice for you. And will arrange the items after got
your payment.
Q: Can we get the sample to check before place large quantity?
A: Sure, sample is available.
Q: How long about the lead time?
A: I will ship out immediately if we have stock, most of items need 3-5 working days.
Q: When can I get the tracking number?
A: I will let you know at the first time after shipped out.
Q: Does buyer need to pay any charge when receive the package?
A: Yes, the custom tax. But depend on your country policy.
