• Model NO.：XIP-2
• Light：LED Light
• Supply Voltage：110V- 230V
• Nominal Current：0.1-0.8A
• Frequency：50,60Hz
• Max. Mechanical Output Power：70W
• Max.Torque on The Motor：5.5ncm
• Motor Speed Range：300-40000
• Transport Package：Foam, Aluminum Alloy Box, Carton.
• Specification：Package size: 43x34x27 cm
• Trademark：XIP-2
• Origin：China
• HS Code：90184990
• Production Capacity：500units,Month

Basic Info.

Model NO. XIP-2 Light LED Light Supply Voltage 110V- 230V Nominal Current 0.1-0.8A Frequency 50/60Hz Max. Mechanical Output Power 70W Max.Torque on The Motor 5.5ncm Motor Speed Range 300-40000 Transport Package Foam, Aluminum Alloy Box, Carton. Specification Package size: 43x34x27 cm Trademark XIP-2 Origin China HS Code 90184990 Production Capacity 500units/Month

Product Description

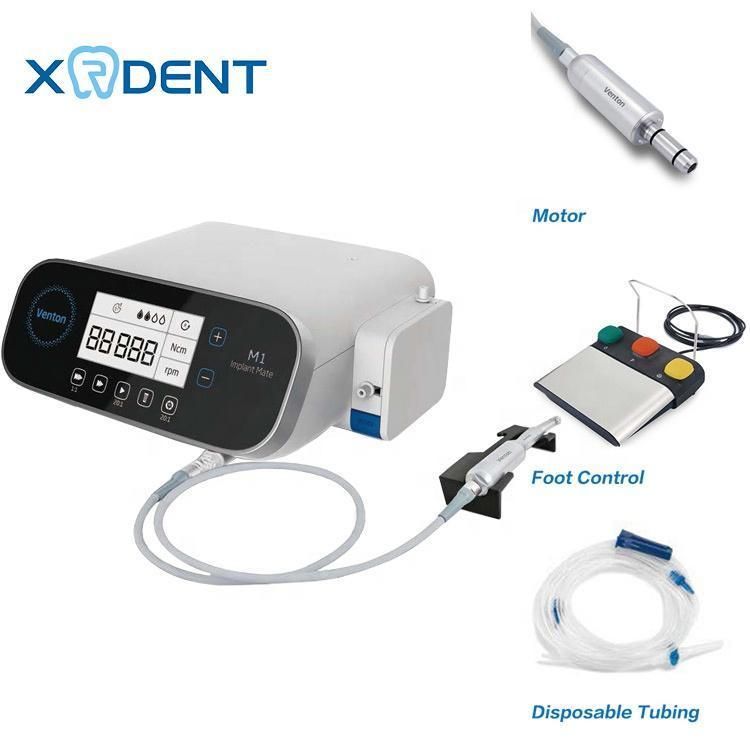

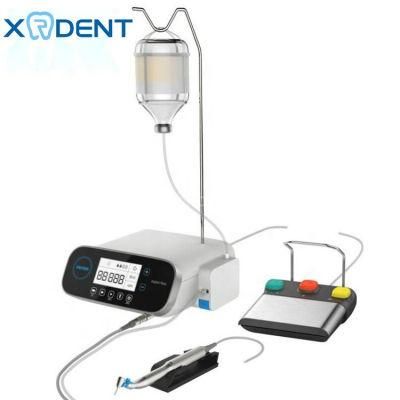

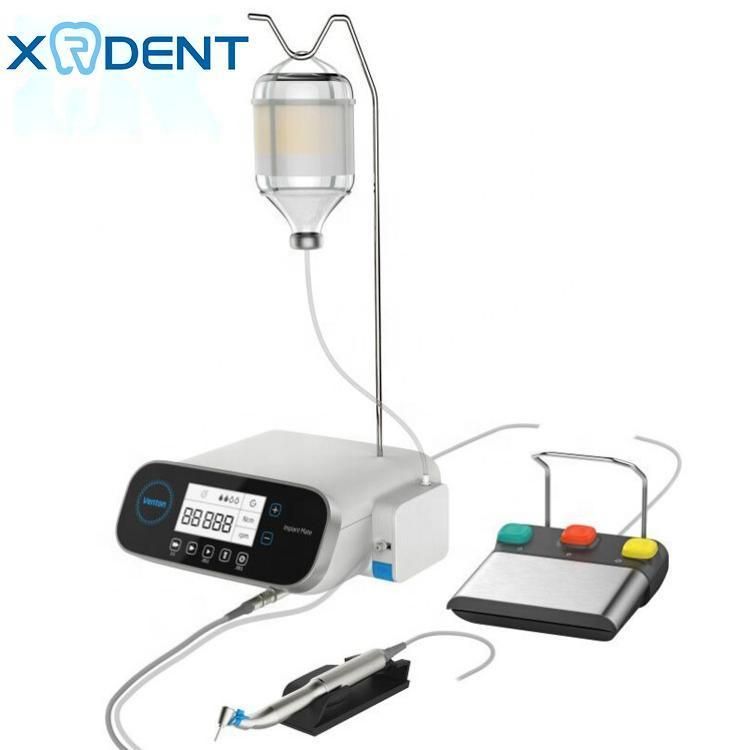

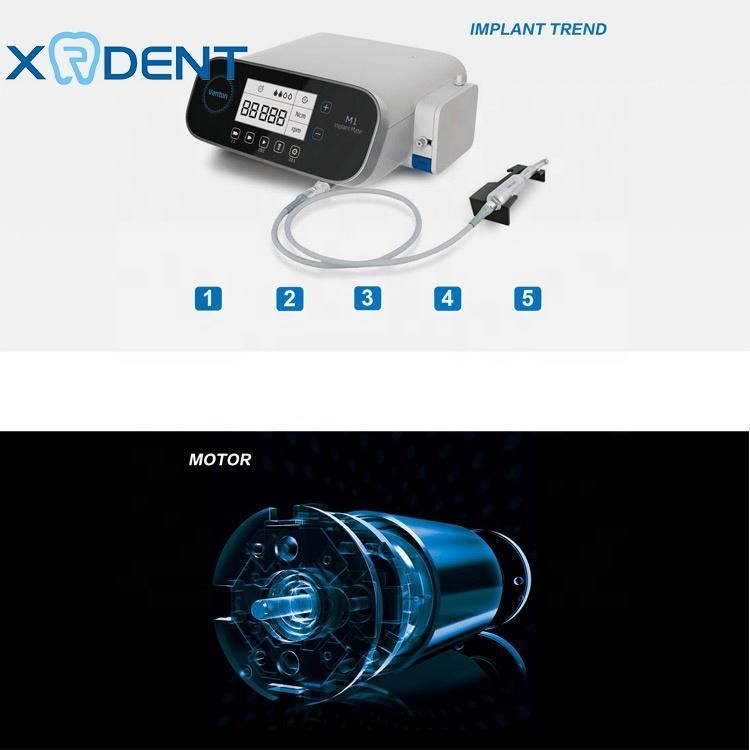

Top Technology Super Stable Rotation Motor Dental Implant System
Technical Data

Supply voltage:	230V
Permitted voltage fluctuation	±10%
Nominal current	0.1-0.8A
Frequency:	50/60Hz
Mains fuse	2*250V-T1.25AH
Max. power consumption	170VA
Max. Mechanical output power	70W
Max. torque on the motor	5.5Ncm
Motor speed range in the nominal voltage range:	300-40000
Coolant flow rate at 100%:	>90ml/min
Operation mode	S3[3min/10min]
Dimensions in mm[W*D*H]	428*328*255
Weight control-unit with motor in kg	5.7/7.3
With 20	1 implant handpiece



Physical characteristics
Temperature for storage and transport: -40ºCto +70ºC
Humidity for storage: 8% to 85%(relative), non-condensing at +40ºC
Temperature during operation: +10ºCto +40ºC
Humidity during operation: 15% to 85%(relative), non-condensing at +40ºC
Atmospheric pressure during operation: 50Kpa-106Kpa
Highest Altitude: 3000m
