• Model NO.：XIP-1
• Short Motor：36000 Rpm 28.6 Mn.M
• Long Motor：1800 Rpm 572 Mn.M
• Warranty：One Year
• Transport Package：Metal and Carton Box
• Specification：43*34*27cm 7.8KG
• Trademark：Venton
• Origin：Henan
• HS Code：90184990
• Production Capacity：5000 Pieces,Year

Basic Info.

Model NO. XIP-1 Short Motor 36000 Rpm 28.6 Mn.M Long Motor 1800 Rpm 572 Mn.M Warranty One Year Transport Package Metal and Carton Box Specification 43*34*27cm 7.8KG Trademark Venton Origin Henan HS Code 90184990 Production Capacity 5000 Pieces/Year

Product Description

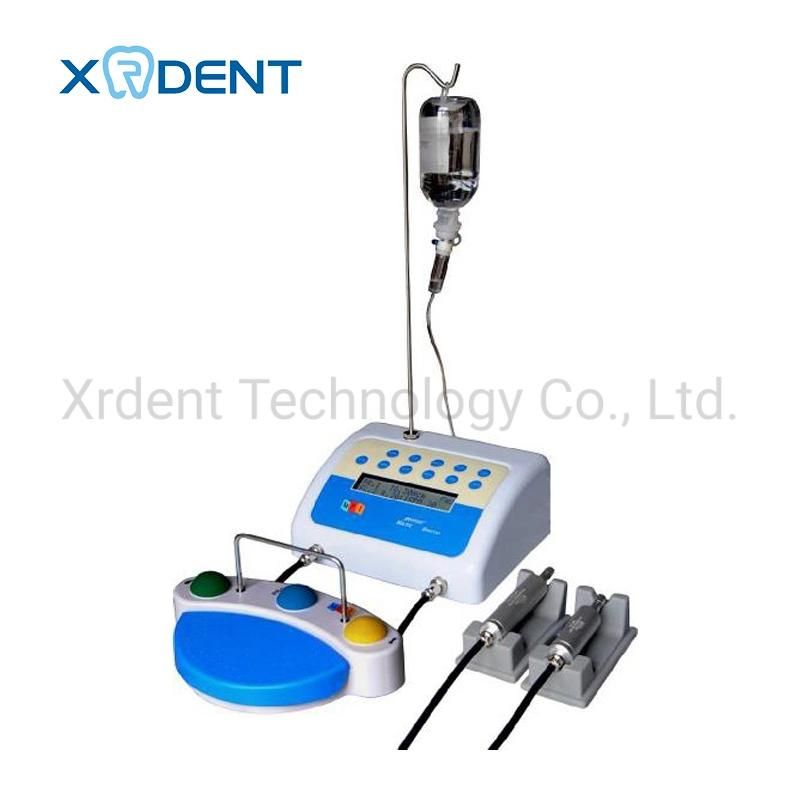

Cheap Dental Implant Motor Machine Price

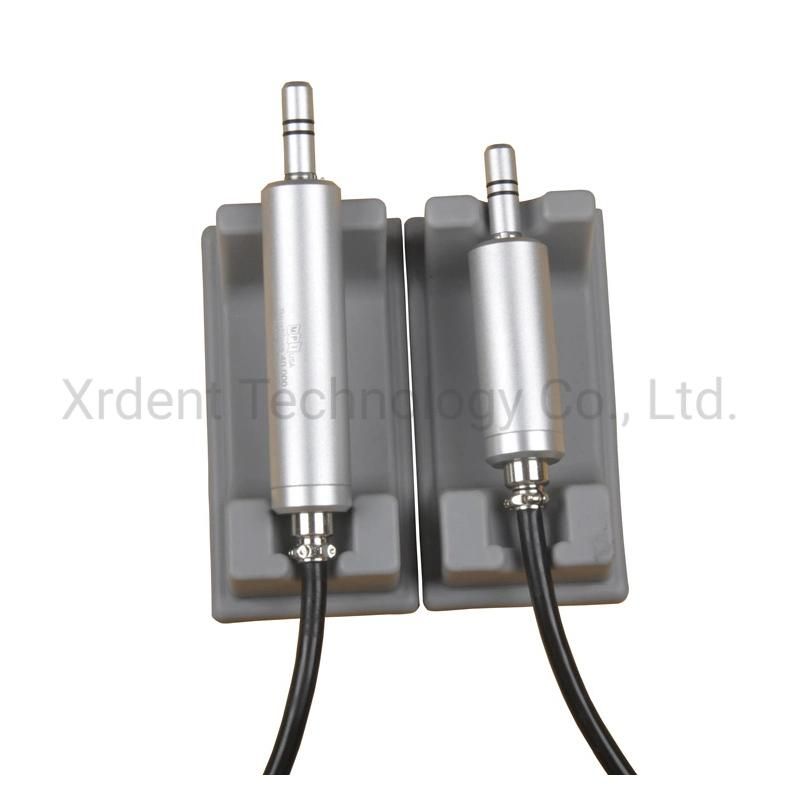

Handpiece motor: 2pcs
Short motor:  36000 rpm 28.6 mN.m
Long motor:  1800 rpm 572 mN.m
Noise:  < 65 dBA
Console:  IP21
Micro motor:  IP65
Application:  Dental implant

Technical characteristics

Manufacturer		Nominal Power	70 VA
Model	DIGITAL	Fuses	1A, 230V
Dimensions (WxDxH)	250mmx200mmx105mm	Protection	Class I
Materials	ABS	Type	BF
Short motor	36000 rpm28.6 mN.m	Class MD	IIa rule 9 in Annex IX 93/42/EEC
Long motor	1800 rpm572 mN.m	Class MD	IIa rule 9 in Annex IX 93/42/EEC
Noise	< 65 dBA	Console	IP21
Supply Voltage	230 VAC/115 VAC	Micro motor	IP65
Frequency	50 Hz /60 Hz	Footswitch	IP21

Features:
-This powerful unit has a reliable electronic speed and torque control with an integrated coolant pump. All on-demand operations during the implantology session can be accomplished with complete safety and extreme accuracy.
-The brushless motor is able to reach a speed of 36,000RPM.
-The ISO 3964 E Type coupling means that the motor can be used with most surgical handpieces both contra angle and straight.
-The rotor of the pump is protected and the tube can be easily installed and changed.
-Please read this manual carefully before using or maintaining it.
-United States Federal Law restricts the use of this device solely to qualified, trained and competent dental health practitioners or under their supervision.
-Use of the MPI Physio-matic is restricted solely to qualified, trained and competent dental health practitioners in the normal context of their work.
-If you have received this device by error, please contact the supplier so that it can be removed.
