• Model NO.：XR-16
• X-ray Control Method：Controlled by The Micro Processor
• Time Setting Range：0.01~1.60 Second (0.01 Sec Step)
• X-ray Tube Type：Stationary Anode X-ray Tube
• X-ray Tube Model：D-081BS(Toshiba)
• X-ray Tube Focal Size：0.8mm
• Target Angle：20°
• Display Method：LCD Display
• SSD：100,200mm
• X-ray Field：55mm (Round Style)
• Net Weight：1.8kg
• Size of Main Body：135(W)×150(D)×175(H)mm
• Battery：Lithium Polymer Battery (DC24V)
• Transport Package：Foam, Original Aluminum Box, Carton.
• Trademark：Xrdent
• Origin：China
• HS Code：90184990
• Production Capacity：500units,Month

Basic Info.

Model NO. XR-16 X-ray Control Method Controlled by The Micro Processor Time Setting Range 0.01~1.60 Second (0.01 Sec Step) X-ray Tube Type Stationary Anode X-ray Tube X-ray Tube Model D-081BS(Toshiba) X-ray Tube Focal Size 0.8mm Target Angle 20° Display Method LCD Display SSD 100/200mm X-ray Field 55mm (Round Style) Net Weight 1.8kg Size of Main Body 135(W)×150(D)×175(H)mm Battery Lithium Polymer Battery (DC24V) Transport Package Foam, Original Aluminum Box, Carton. Trademark Xrdent Origin China HS Code 90184990 Production Capacity 500units/Month

Product Description

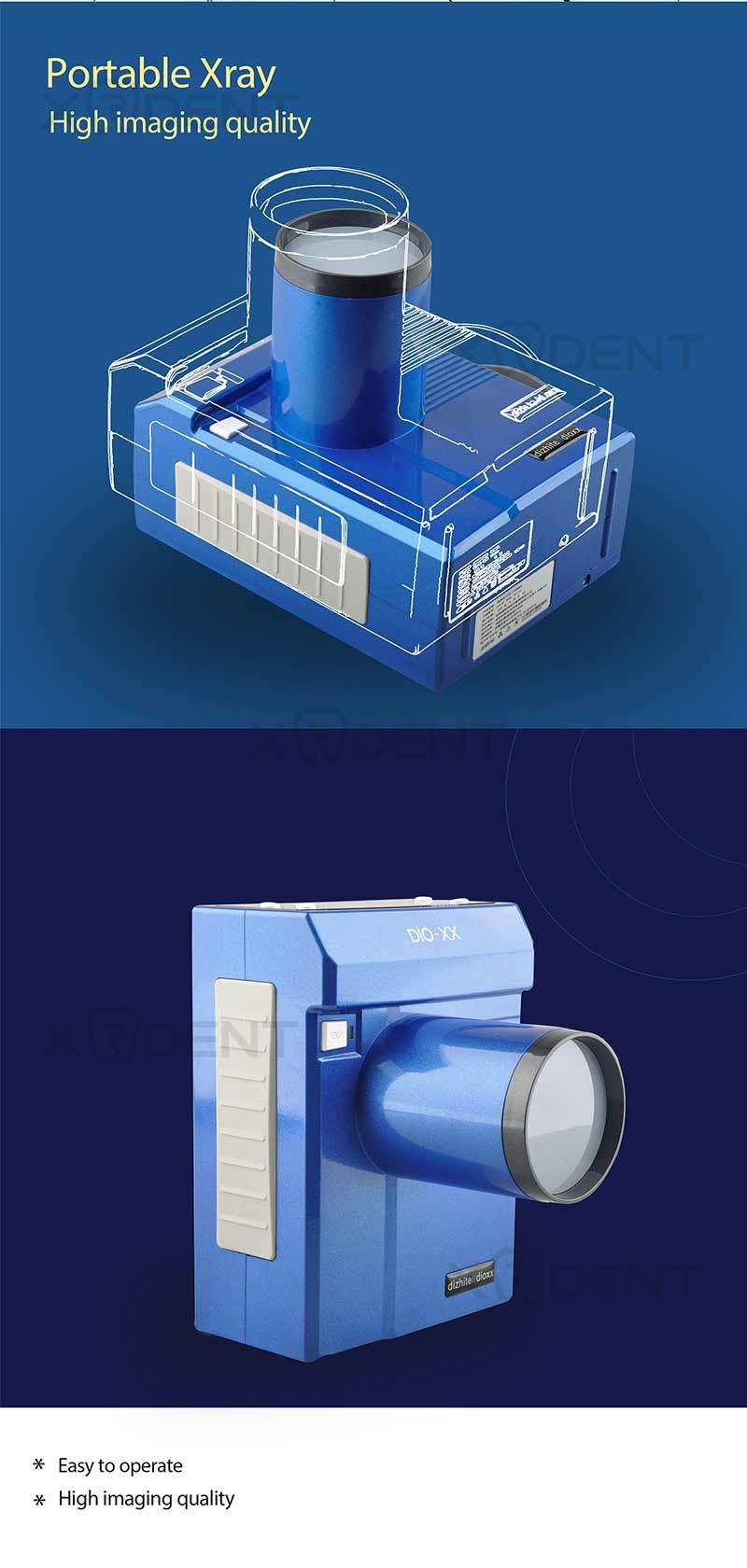

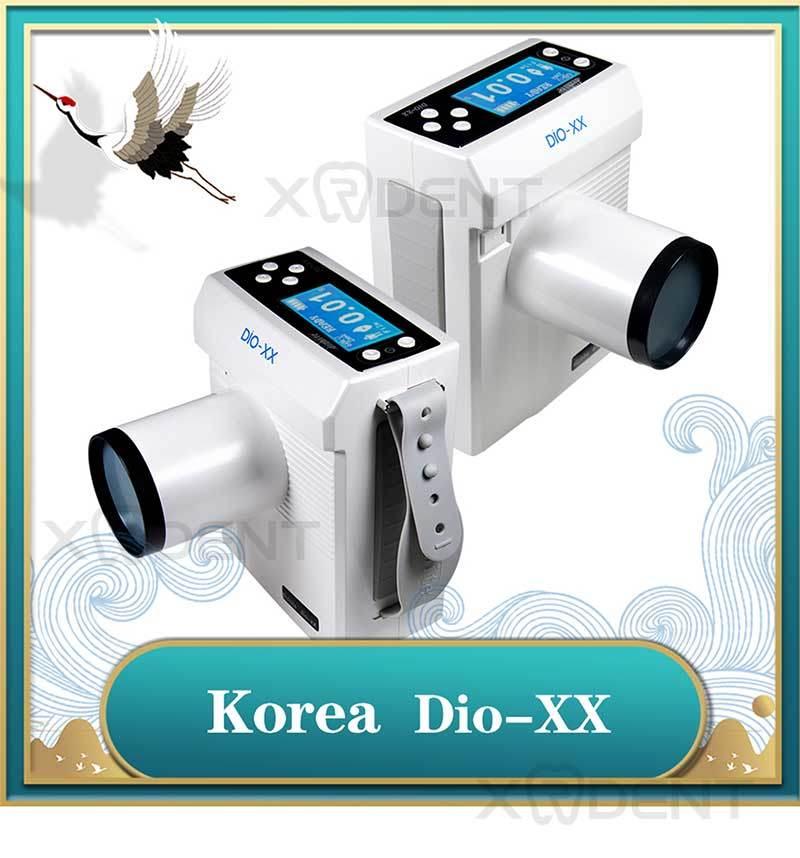

HD White  DIO-XX Portable Dental X-Ray Unit Machine

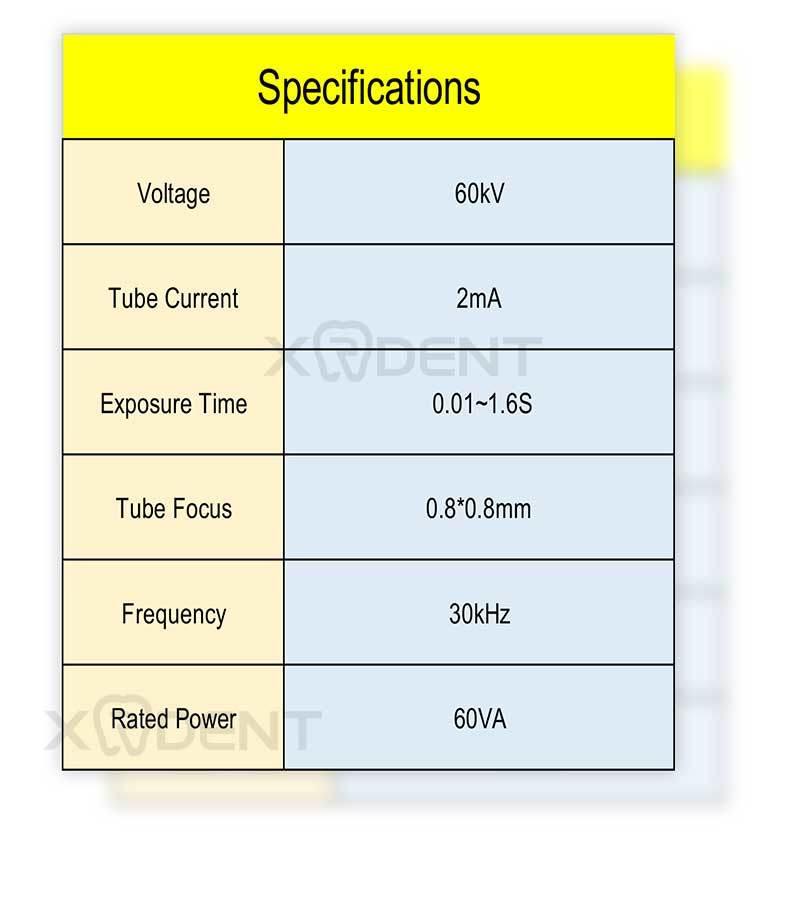

Technical Data


Tube voltage	60kV (Fixed)
Tube current	2mA (Fixed)
High voltage generator circuit	High frequency Inverter method
X-ray control method	Controlled by the micro processor
Time setting range	0.01~1.60 second (0.01 sec step)
X-ray tube Type	Stationary anode X-ray tube
X-ray tube model	D-081BS(Toshiba)
X-ray tube focal size	0.8mm
Target angle	20°
Total filtration	1.6mm Al (Inherent filtration: 0.8mmAl, Fixed added filtration: 0.8mmAl)
Display method	LCD Display
SSD	100/200mm
X-ray field	55mm (Round style)
Net Weight	1.8kg
Size of main body	135(W)×150(D)×175(H)mm
Battery	Lithium polymer battery (DC24V)
Charger Input	100~240V, 50~60Hz, 1.0A
Charger Output	DC25.2V, 0.75A)

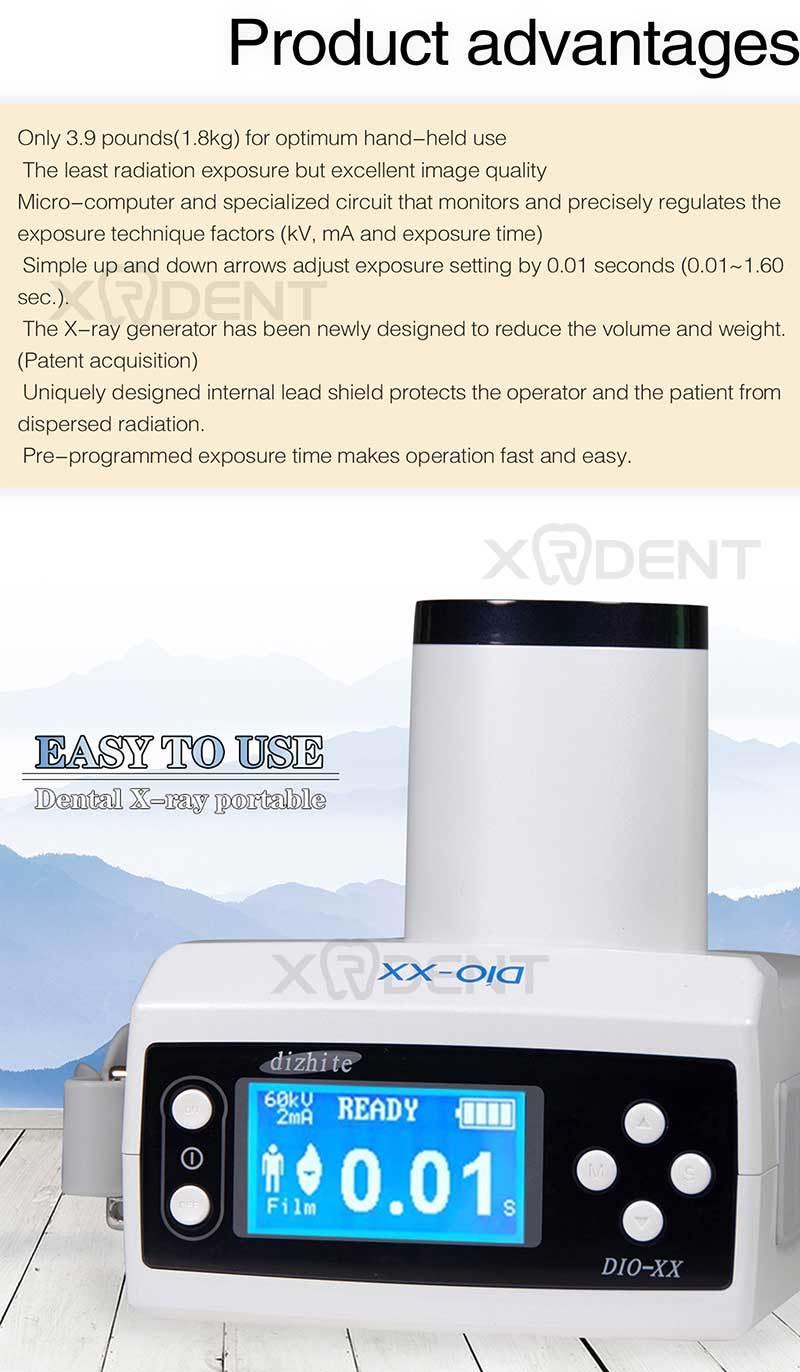

Features

★Only 3.9 pounds(1.8kg) for optimum hand-held use
★The least radiation exposure but excellent image quality
★Micro-computer and specialized circuit that monitors and precisely regulates the exposure technique factors (kV, mA and exposure time)
★Simple up and down arrows adjust exposure setting by 0.01 seconds (0.01~1.60 sec.).
★The X-ray generator has been newly designed to reduce the volume and weight. (Patent acquisition)
★Uniquely designed internal lead shield protects the operator and the patient from dispersed radiation.
★Pre-programmed exposure time makes operation fast and easy
