• Model NO.：Lotus 303PBQ-N
• Application：Adult, Child
• Loading Way：Gland Type
• Head Diameter：Middle Head
• Exhaust Way：Internal Exhaust
• Number of Holes：6 Holes
• Connection：With Quick Connector
• Rotating Speed：High-Speed Handpiece
• Model：6 Hole
• Head：Standard , Torque
• Spray：3 Way Spray
• Speed：>300,000rpm
• Burs：Φ1.595~Φ1.600mm
• Chuck Type：Push Button
• Transport Package：Standard Export Carton
• Specification：10pcs,box
• Trademark：Vimel
• Origin：China
• HS Code：90184990
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. Lotus 303PBQ-N Application Adult, Child Loading Way Gland Type Head Diameter Middle Head Exhaust Way Internal Exhaust Number of Holes 6 Holes Connection With Quick Connector Rotating Speed High-Speed Handpiece Model 6 Hole Head Standard / Torque Spray 3 Way Spray Speed >300,000rpm Burs Φ1.595~Φ1.600mm Chuck Type Push Button Transport Package Standard Export Carton Specification 10pcs/box Trademark Vimel Origin China HS Code 90184990 Production Capacity 5000PCS/Month

Product Description

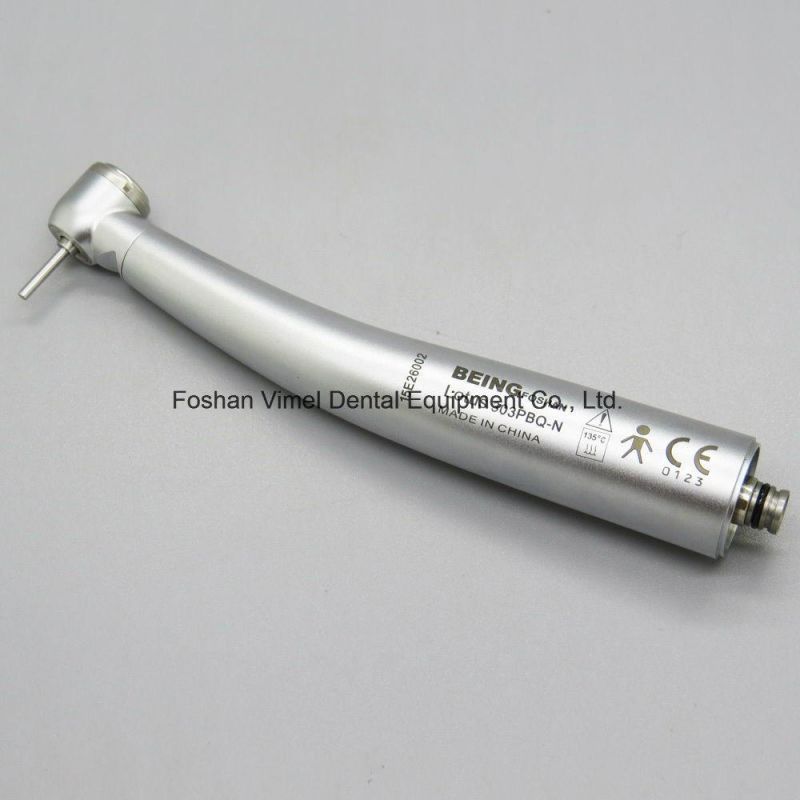

Optical Handpiece

Techniclas

Tyep
Speed	380000--430000 rpm
Chuck type	Push button
Spray	3 way spray
Air Pressure at the  back end of HP	206~231 KPa (2.1~2.35  kgf/cm2)
Air Pressure at the  gauge in the dental unit	240-294 KPa  (2.45-3.0 kgf/cm2)
Water pressure	198Kpa (2 kg)
Head dimension	10.8  x H13.14mm
Burs Applicable	Φ1.595~Φ1.600mm
Noise	<68dB
Source of Light	LED
Bulb working voltage	3.0-3.2v
Weight of Handle	Weight of Handle
Bearing type	Imported Bearings

Features

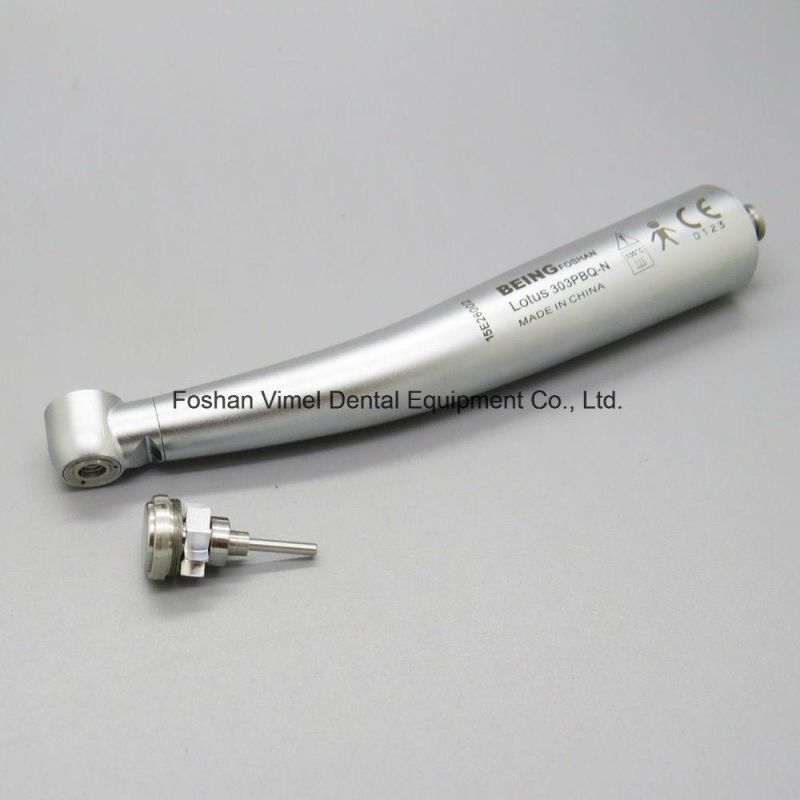

1.Push button type,  easy changing cartridge.
2. New triple water  spray system can cool the treated area  and the bur effectively and roundly.  Clogging of the the spray port is thus  minimized.
3.The Non-retraction  structure in the handpiece,prevents  suction of oral fluids in a patient's  mouth into the water line of the  handpiece at the spray water outlet  port.

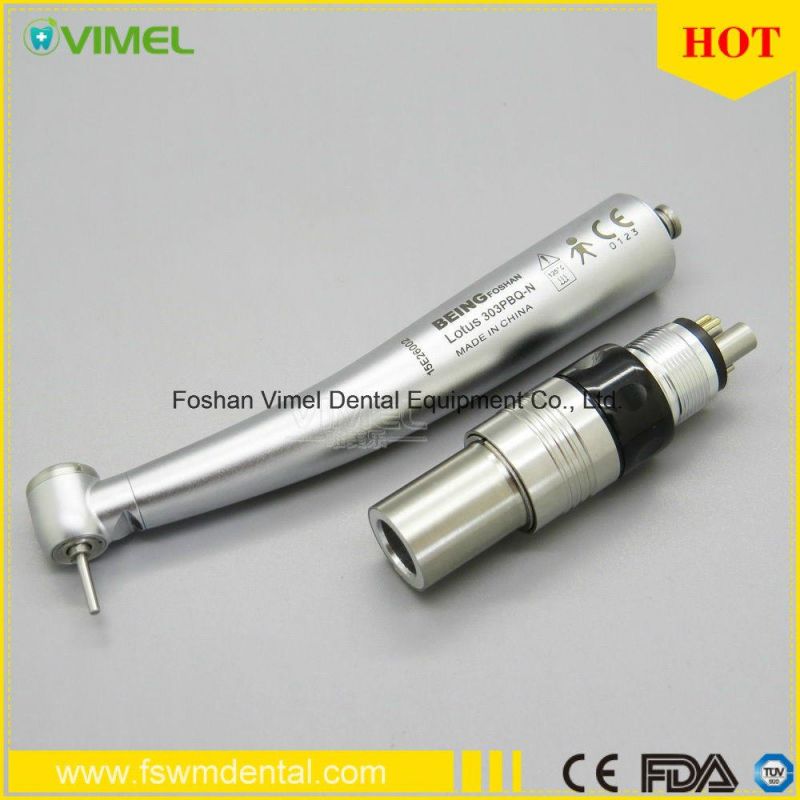

4. With quick  coupling, easy to load or unload the  handpeice from the tubing of the dental  unit.
5. Water spray can be  controlled in the quick coupling.
6. Offering a better  eyeshot and angle, improving your  efficiency.
7. High density  cartridge, with high cutting efficiency  but less vibration and noise.
8. Newly-designed  handle, comfortable to hold and easy to  clean.
9. Both handpiece and  quick coupling are autoclavable. (up to  135ºC)
