• Model NO.：TY-808
• Material：Metal Frame
• Spittoon：Rotatable Removable Spittoon
• Light：LED Sensor Operating Light
• Cushion：Leather
• Foot Controller：Round Foot Controller
• Armrest：Double Armrest
• Usage：Dental Clinic , Dental Hospital
• Dimesion：145X106X112cm
• Package：16 PCS in 20 Container, 32PCS in 40 Hq Container
• Transport Package：Woodencase
• Specification：CE,ISO
• Trademark：TOYE
• Origin：China
• HS Code：9018491000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. TY-808 Material Metal Frame Spittoon Rotatable Removable Spittoon Light LED Sensor Operating Light Cushion Leather Foot Controller Round Foot Controller Armrest Double Armrest Usage Dental Clinic / Dental Hospital Dimesion 145X106X112cm Package 16 PCS in 20 Container, 32PCS in 40 Hq Container Transport Package Woodencase Specification CE/ISO Trademark TOYE Origin China HS Code 9018491000 Production Capacity 1000PCS/Month

Product Description

High Quality Colorful Standard Size Dental Unit with LED Sensor

Features:
1. Adopt 24V imported slience DC motor from Taiwan
2. Imported  Solenoid valve
3. Removable and rotatable cuspidor
4. Pipelines disinfection device
5. Ergonoic solutions chair, make patient more comfortable .
6. Paper holder, 2pcs 3 way syringes.
7. Double armrests, on the right side of the armrest can be rotated 180 °
8. Sensor LED sensor light
9. Central Suction System(without vacuum pump).
10. Stable floor type structure.
11. Auto cuspidor flush & water supply control constant temperature system
12. Built in or built out floor box optional.

Technicals

Voltage	AC220V, 50Hz
Motor	DC24V
Air pressure	0.5-0.8MPa
Water pressure	0.2-0.4MPa
N.W	180KG
G.W	200KG
Packing size	145*106*115cm

Standard configuration

High-end static Internal Guide-way chair	1set
Chair position compensation function; 3-memorypositions	1set
Bowl-rinsing and mounth-Rinsing functions with automatic quantiative and constant-temp water supply system	1set

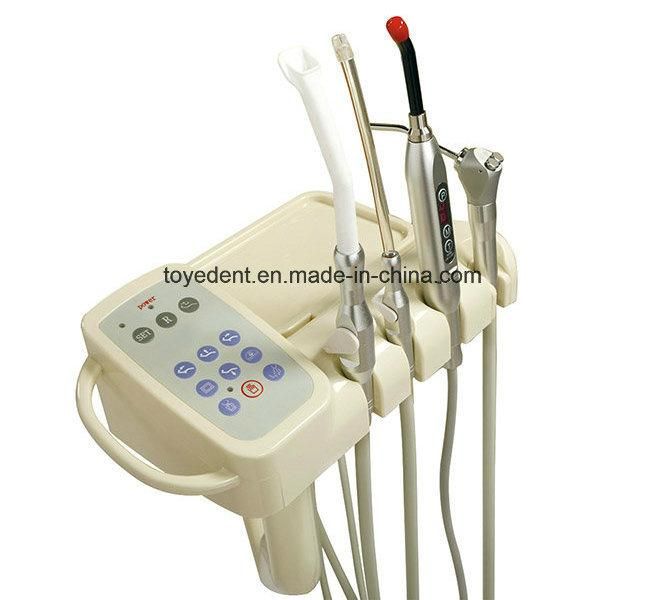

Assistant control system	1set
Removable and rotatable cuspidor	1set
High/low saliva suction system	1set
3-way syringe(cold and hot)	2pcs
Handpiece water purifying device	1set
Pipelines disinfection device	1set
one-piece tray and cup holder and tissue box	1set
LED film viewer	1set
High-performance LED operation lamp (color temp can be adjust; sensor/manual operations)	1set
American style round pedal	1set
Main switch for water, air and power	1set
Luxurious doctor stool	1 pc
Luxurious imported ultralfabric upholstery set/microfibre set	1set
backrest with negative-angle design	1set
superior polyether air/water tubes made in the U.S	1set
TIMOTION DC motors, Brand of Taiwan	1set

Options

1. Imported 4-hole high and low speed handpiece
2. LED cure light
3. Ultrasonic scaler
4. Endoscope system
5.Top-mounted instrument tray

FAQ:
1.Q:Are you a factory or trading company?
A:We are  factory.we produce dental chair, dental intra oral camera and dental air compressor, and it's approved CE certificated.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Foshan City, Guangdong Province, China, near Guangzhou.You can fly to Baiyun airport ,you can take tax or metro to Foshan directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q: How can I get Fob or C&F price?
A: Normally production time of products is from two week to one month depending on the quantity ordered. If you are sourcing a product, our representative will give you specific information regarding the lead time. If you need a rush order, contact our representatives to discuss your specific needs.

4.Q: How long is my warranty and what does it cover?
A:Detnal unit chair carry the full one year manufacturer warranty. Each warranty period begins at the date of delivery date and ends after one year.The warranty varies by option items and manufacturer All warranty claims will be void due to neglect, lack of maintenance, and/or improper handling.

5.How can I get the after sevice? How can I get the spare part after one year warranty?
A: We welcome your chats online (Chat or leave message: After service) or e-mail to us regarding any technical or related questions that you may have. And we will offer some free sparts for container order. We gurantee keep dental chair units spare parts offer.

If you want to know more information about our products welcome to contact us in any time, And welcome to our company!
