Dental Composite Resin Whitening Gel Heater Ar Heat Composite Warmer
Foshan Vimel Dental Equipment Co., Ltd.- Type：Cleaning & Filling Teeth Equipments
- Material：Metal
- Applicable Departments：Oral Rehabilitation Department
- Nature：Specialized Instrument Equipment
- Certification：UL, CE
- Kind：Needle & Hook
Base Info
- Model NO.：WM-01
- Power Adapter：AC100-240V 50,60Hz
- Output：12V DC 2A
- Power：24W
- Net Weight：0.85kg,PCS
- Size：9.5*9.5*12cm
- Transport Package：1set,Box
- Specification：300g
- Trademark：VIMEL
- Origin：China(Mainland)
- Production Capacity：50000piece,Year
Description
Basic Info.
Model NO. WM-01 Power Adapter AC100-240V 50/60Hz Output 12V DC 2A Power 24W Net Weight 0.85kg/PCS Size 9.5*9.5*12cm Transport Package 1set/Box Specification 300g Trademark VIMEL Origin China(Mainland) Production Capacity 50000piece/YearProduct Description
Description of product:AR Heat designed for heating composite resin material, improve the flow of its adhesive properties; At the same time it can also be used to heat adhesive when used manual equipment.
AR Heat use the precision circuit control module to heat, control the temperature tolerance within 1 degree, According to your choice of material and personal preference temperature can be set up to: 40 degrees, 50 degrees and 70 degrees.

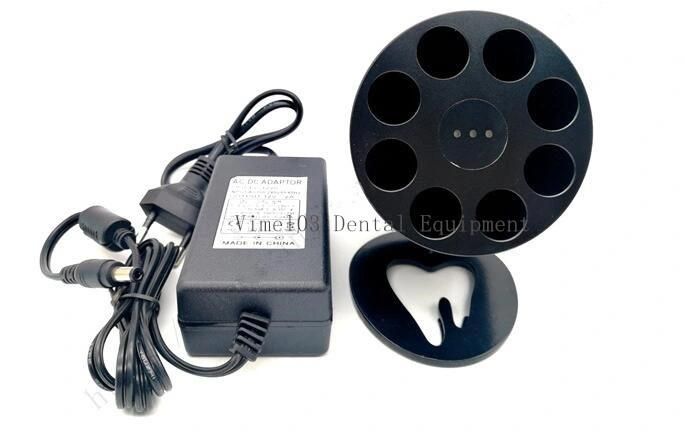

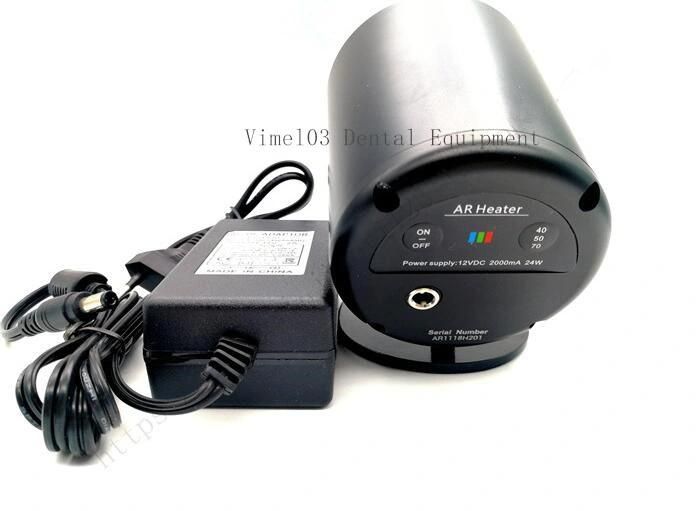

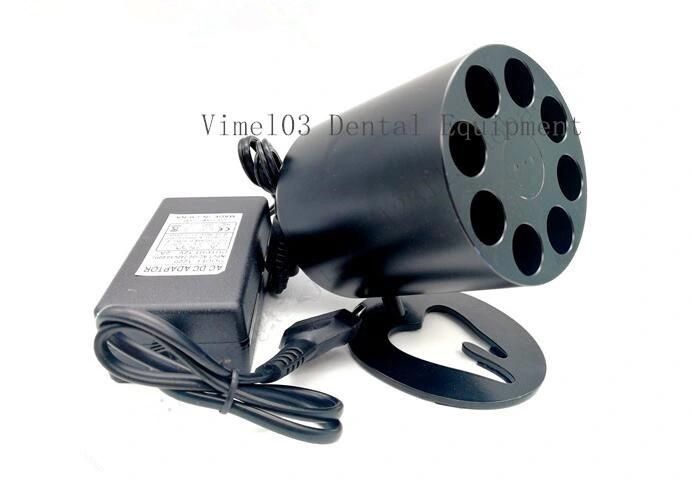

AR Heat consist:
1-heat the main body
2-power adapter
3-temperature indicator light
4-Turn on/off button.
5-thermopreferendum button
6-power DC socket.
Technical specification:
Power adapter: Input: 100-240V AC 50/60Hz 0.8A Max.
Output: 12V DC 2A
Underfined:
Power: 24W
Temperature setting: 40±1ºC, 50±1ºC, 70±1ºC
Products Category: Dental Composite Heater.
Package Size: 21*11*8.5cm
Package Gross Weight: 1kg
Operation:
1. Insert the plug of power adapter DC heating main body of the DC socket, and then insert the power adapter into electric outlet. Then three temperature indicator light normally on at the same time;
2. Place the heating body on the smooth desk;
3. turn on/off button, open the heating body, pressing the button once again, close the heating body, boot the default temperature of the heating body is 40 degrees (closed heating body, three temperature indicator light normally on at the same time);
4. According temperature selection button can choose what you need, the follow detailed list of temperature can be seen:
| Temperature | Indicator light color | Heating | Reach the #ff0000 temperature |
| 40ºC | White | White LED glisten | White LED light normally on |
| 50ºC | Green | Green LED glisten | Green LED light normally on |
| 70ºC | Red | Ged LED glisten | Rd LED light normally on |
5. Use the resin composite material of syringe inserted into a slot in the heating body, or put into the using manual equipment reach the undefined temperature;
