• Model NO.：YES RVG
• External Dimension (mm)：39X27.5
• Sensor Active Area(mm)：30X22.5
• Sensor Thickness：6mm
• Cable Length：3meter
• Operation System：Windows2000,XP,Win7,Win8,Win10
• Transport Package：Carton Box
• Specification：41*32*7cm
• Trademark：YES RVG
• Origin：China
• HS Code：90184990
• Production Capacity：1000units,Month

Basic Info.

Model NO. YES RVG External Dimension (mm) 39X27.5 Sensor Active Area(mm) 30X22.5 Sensor Thickness 6mm Cable Length 3meter Operation System Windows2000/XP/Win7/Win8/Win10 Transport Package Carton Box Specification 41*32*7cm Trademark YES RVG Origin China HS Code 90184990 Production Capacity 1000units/Month

Product Description

Excellent Quality Medical Dental X Ray Imaging Sensor

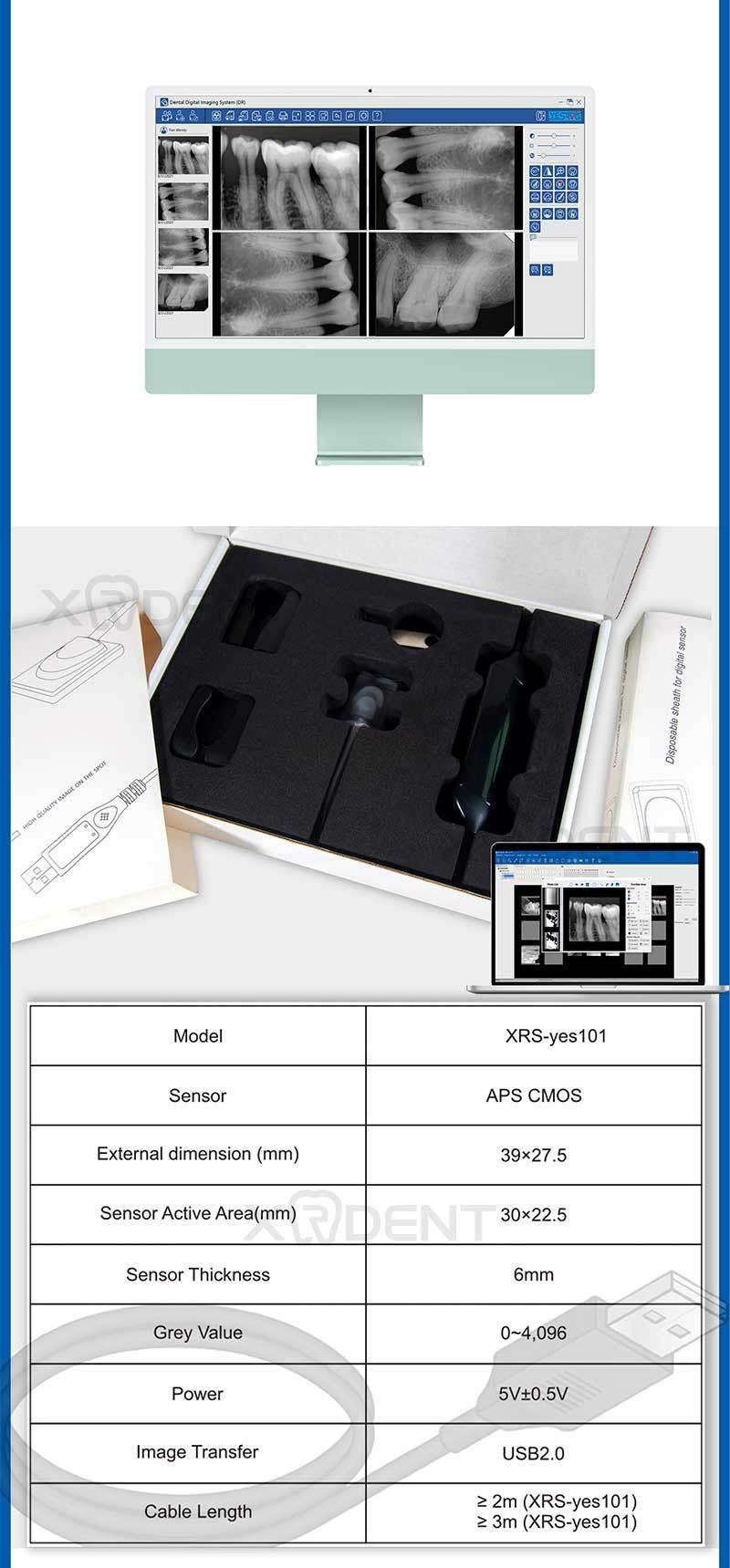

Technical Data


Sensor	APS CMOS
Extemal dimension(mm)	39.5*27.5
Sensor Active Area(mm)	30*22.5
Sensor Thickness	6mm
Grey Value	0-4096
Power	5V±0.5V
Image Transfer	USB2.0
Cable Length	3 m
Operation System	Windows2000/XP/Win7/Win8/Win10

Features

★YES RVG sensor offers exceptional sharp and precise images. The anatomical detail level of images will allow you to make an immediate and reliable diagnosis.
★Yes RVG imaging software Easy to use and powerful, YES RVG Imaging software provides dozens of useful tools to help you to have the right diagnosis.
★YES RVG sensor system has been reinforced. The sensor case includes a shock-absorber protecting from falls and bites and its USB connector has been re-design for strengthness. It guarantees an optimal durability through time.
★Completely waterproof, the YES RVG sensor can be safely cleaned with disinfectant liquids.
★YES RVG just needs be connected to your computer via its USB direct technology. It is ready to use. The sensor is easily portable and adapt to your dental-office configuration, single or multiple station.
★The corners and angles of the sensor are rounded for easier placement inside the mouth and for increased patient comfort. The cable located at the top of the sensor case makes the sensor positioning easier, horizontally and vertically.


Operating conditions:

Recommended Client PC specifications
★CPU:Inter 1.5GHz or Higher
★Memory:Above 4GB
★Hard disk:Above 40G
★Video Card:256MB or Higher
★Display:1024*768*32bit or more
★Operating System:Windows XP/7/109(32&64bit)
