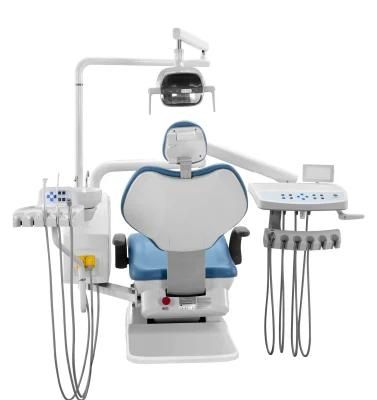

• Model NO.：ADS-D4
• Lamp：Luxury LED
• Feature：Double Water Bottle
• Unit Box：Normal
• Foot Pedal：6 in 1
• Solenoid Valve：Italy Imported
• Motor：Taiwan Imported
• Water Tube：Imported
• Air Tube：Imported
• Spittoon：Removable Ceramic Spittoon
• Air Pressure：400-600kpa
• Water Pressure：200-400kpa
• Bearing Capacity of The Chair：About 135 Kg
• Weight：185kgs
• 20gp：34 Units
• Transport Package：Wooden Case
• Specification：133*108*119cm
• Trademark：ADELSON
• Origin：China
• HS Code：9018491000
• Production Capacity：1000 Units,Month

Parameters:
Environment temperature: 5°C to 40°C
Related humidity: ≤ 80%
Power supply :~110-220V ± 10%; 50Hz ± 10%
Air pressure: 400-600kPa
Water pressure: 200-400kPa
Bearing capacity of the chair: ≤ 135 KG

Options:

Imported 2/4-hole high speed handpiece/ made in China
Imported 2/4-hole low speed handpiece/ made in China
Ultrasonic scaler
Intra Oral Camera with monitor
Built in/ built-out LED Curing light
Oil-free air compressor

More detail picture for you reference;


More models for you to choose
Show us:

Dental clinic piping requirements

1.Water supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface (PPR Fusion Tube is
recommended, 4 points internal and external tooth straight through valve)

2.Air supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface(PPR Fusion Tube is recommended,
4 points internal and external tooth straight through valve )

3.Drainage pipe: White  PVC drain pipe, main pipe 17mm,branch pipe φ50mm.

4.VGA video screen and USB data cable: white PVC threading pipe φ 32mm, leaving a wire to be threaded in the future;

5.Negative pressure pipe: blue UPVC water supply pipe, outer pipe outer diameter φ50mm,branch pipe outer diameter φ 32mm, access to the outer diameter of the dental chair tube25 25mm.

6.Negative pressure signal line: white PVC threading tube, 4 points φ20mm) sleeve2*1mm2 line;

7.Power cord: white PVC threading tube, 4 points (φ 20mm) sleeve 3*1.5mm2 line; Note: Straight angle joints
cannot be used at the drain and negative pressure pump connections, and 45 degree joints are used.
The water purifier water supply and the air compressor inlet air must be reserved for the switch.

Our company reserves the right to make any improvement on product design without advance notice.
