• Model NO.：Low speed handpiece
• Application：Adult, Child
• Loading Way：Gland Type
• Head Diameter：Small Head
• Exhaust Way：Exhaust Outside
• Number of Holes：Non
• Connection：Without Quick Connector
• Rotating Speed：Low-Speed Handpiece
• Noise：Less Than 70dB
• Transport Package：Standard Export Carton
• Specification：100g,pcs
• Trademark：T-med
• Origin：China
• HS Code：90184100
• Production Capacity：1000PCS,Month

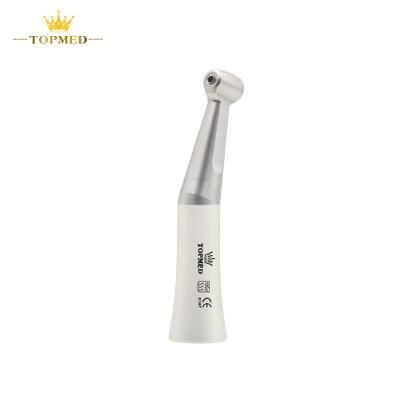

Description for dental low speed handpiece kit:

1. External water spray

2. Short motor

3. Reducing size and weight

4. Updated to an integrated design in response to modern demands. Shorter and lighter than precious models. Its shorter, lighter air motor gives optimal balance, reducing stress and fatigue during treatments and enabling you to focus on the procedure at hand

5. More comfortable to use

Technical for dental low speed handpiece kit:

Chuck Type:Push button

Noise:≤70dB

Air pressure: 0.3MPA

Bur applicable: ø2.35mm

Rotation speed: 20,000rpm

ISO E-TYPE Connect

4 /2Hole Air motor

Handpiece maintenance

Cleaning
There is many chippings left inside of the high speed handpiece during working, effact the speed. Wshing by special hanpiece cleanser after used.

Lubrication
Speed of handpiece in the working reaches 350000rpm, so Lubrication is necessary.In large working should be lubricate it once per day.
(Note: washing the handpiece by special cleanser please do not to touch the hose avoid the hose harding.)

Air pressure
Air pressure of handpiece between 2~3Mpa, the new hanpiece run-in-period the air pressure should be control in 2Mpa.

Needle and Handpiece
When the hand piece doesn't load needle, please don't let it idle, because it will damage the handpiece.

Picture:
